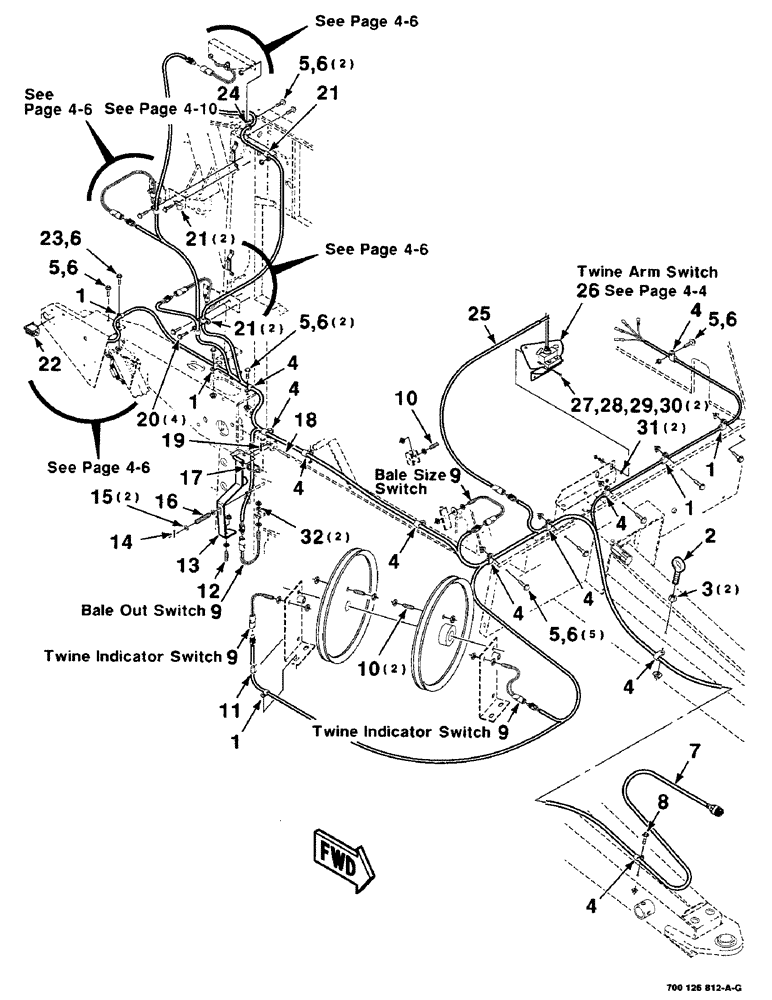

Запчасти Case IH 8455T (4-02) - ELECTRICAL ASSEMBLY, FRONT (06) - ELECTRICAL

1

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

5шт.

2

866061

EYEBOLT

EYE BOLT

1шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

10шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

7

700710795

HARNESS

- wire

1шт.

8

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

1шт.

9

700119161

SWITCH

SENSOR "A"

4шт.

10

700710211

ACTUATOR

3шт.

11

700710813

CLIP

- terminal

1шт.

12

700707354

CONNECTION,ELECTRIC

ACTUATOR

1шт.

13

700119957

SUPPORT

WA - switch

1шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

15

495-21044

WASHER,3/8"

2шт.

16

700707978

SPRING

- compression

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

Q657

HEADED PIN,9.53mm OD x 69.85mm L

3/8 X 2-3/4 CLEVIS PIN

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

20

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/8-18 X 3/4 HWHTCTS

4шт.

21

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

5шт.

22

700707437

COUNTER

- bale

1шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

24

700708340

GROMMET

1шт.

25

700712514

ROD, CONNECTING

WIRE - assembly (S.N. CFH0080001 thru CFH0080205)

1шт.

26

700129402

SWITCH

ASSEMBLY

1шт.

27

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

425-104

NUT,1/4"-20, Cl 5

2шт.

31

700127895

SPACER

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.
