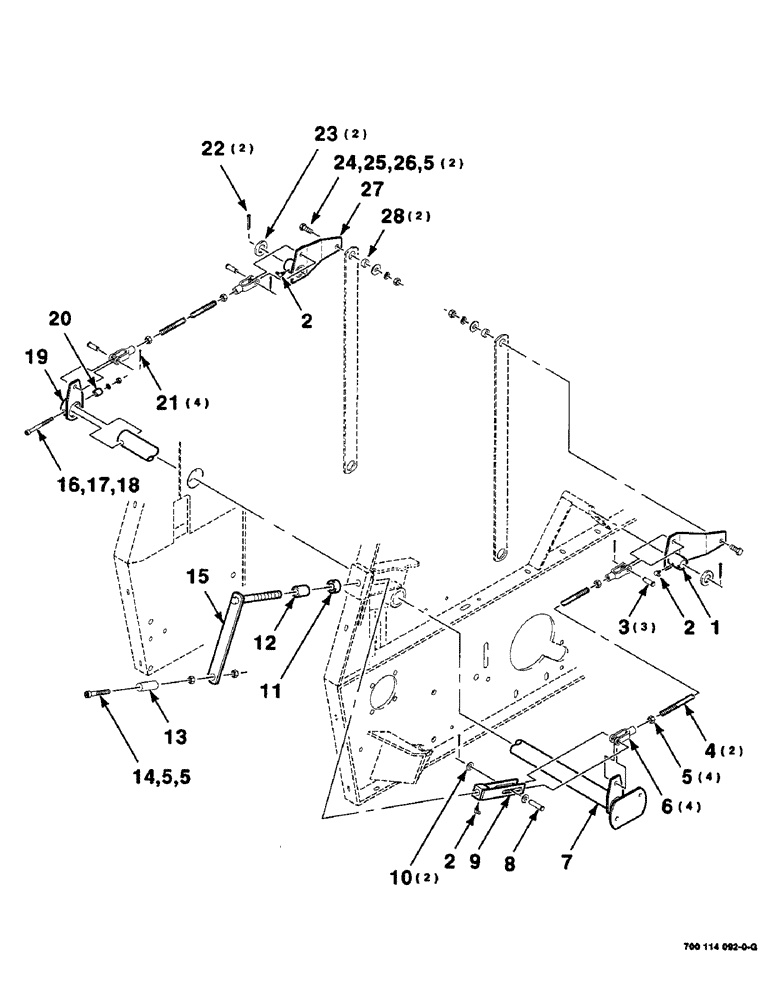

Запчасти Case IH 8455T (3-10) - PICKUP LIFT ASSEMBLY Pickup

1

700114185

CRANK

BELLCRANK WA - left

1шт.

2

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

3шт.

3

IH63677

CLEVIS PIN

1/2 X 1-27/64 CLEVIS PIN

3шт.

4

700114196

STEM

ROD

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

066183

CLEVIS

4шт.

7

700114176

TUBE

- pickup torque

1шт.

8

63966

PIN

1/2 X 3 CLEVIS PIN

1шт.

9

700114190

CLEVIS

WA

1шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

11

700707873

THRUST BEARING

BEARING - thrust

1шт.

12

6292387

SPACER,31.75 mm OD, 44.5 mm Length

TUBE

1шт.

13

700114197

TUBE,21 mm ID, 25.4 mm OD, 72 mm Length

- crank

1шт.

14

9406829

HEX SOC SCREW,1/2" - 13 x 3 1/2"

1/2-13 X 3-1/2 HSHCS SPL

1шт.

15

700114193

CRANK

WA

1шт.

16

702019

SCREW

3/8-16 X 4 HSHCS SPL

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

700114183

LEVER

WA

1шт.

20

6869382

SPACER

1шт.

21

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

23

52258

BUSHING

1 X 14 GAUGE NRMB

2шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

25

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

700114186

CRANK

BELLCRANK WA - right

1шт.

28

296038

SPECIAL TOOL

2шт.
