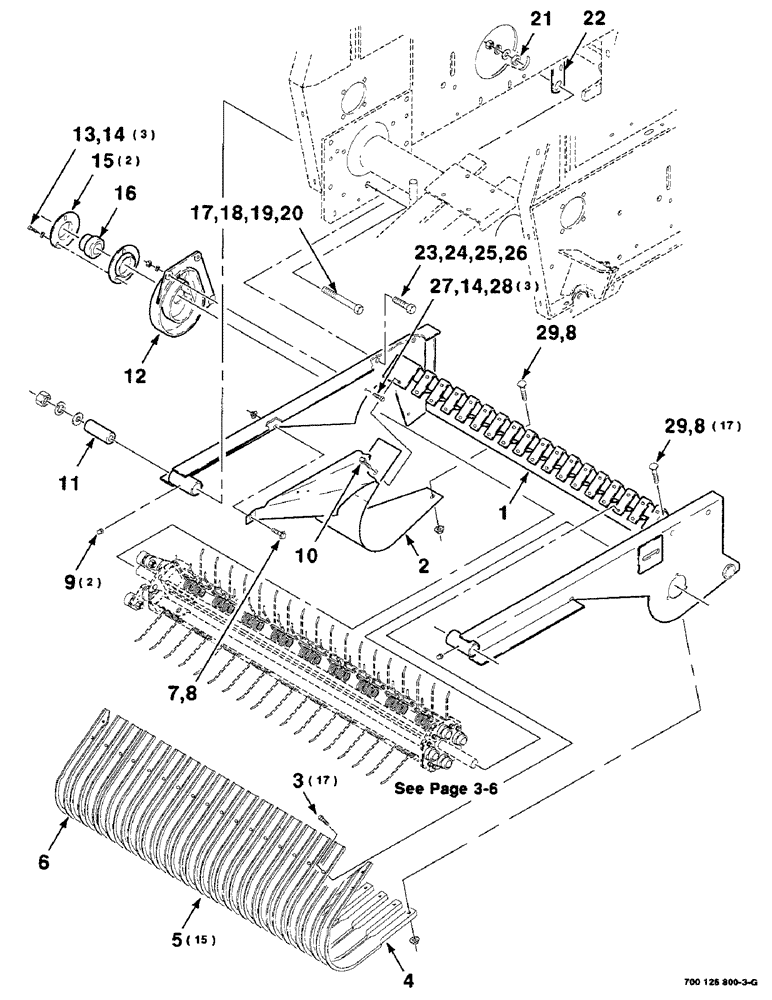

Запчасти Case IH 8455T (3-04) - PICKUP, WRAPPERS AND CAM ASSEMBLY Pickup

1

700114118

FRAME

WA - pickup

1шт.

2

700114134

DEFLECTOR

WA - right

1шт.

3

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

17шт.

4

700122837

TOOTH

WRAPPER - tine, left

1шт.

5

700114144

GUARD

WRAPPER - tine

15шт.

6

700122840

TOOTH

WRAPPER - tine, right

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

19шт.

9

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

11

700114172

TUBE,38.1 mm OD, 102 mm Length

- pickup, pivot

1шт.

12

700116125

HOUSING

TRACK - cam

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

14

492-11038

LOCK WASHER,3/8"

6шт.

15

617863R1

FLANGED BEARING

- bearing

2шт.

16

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

1шт.

17

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

1шт.

18

495-21081

WASHER,3/4"

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

425-1012

NUT,3/4"-10, G5

1шт.

21

378521

SPACER

1шт.

22

700114170

STRAP

1шт.

23

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

24

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

28

425-106

NUT,3/8"-16, Cl 5

3шт.

29

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

18шт.
