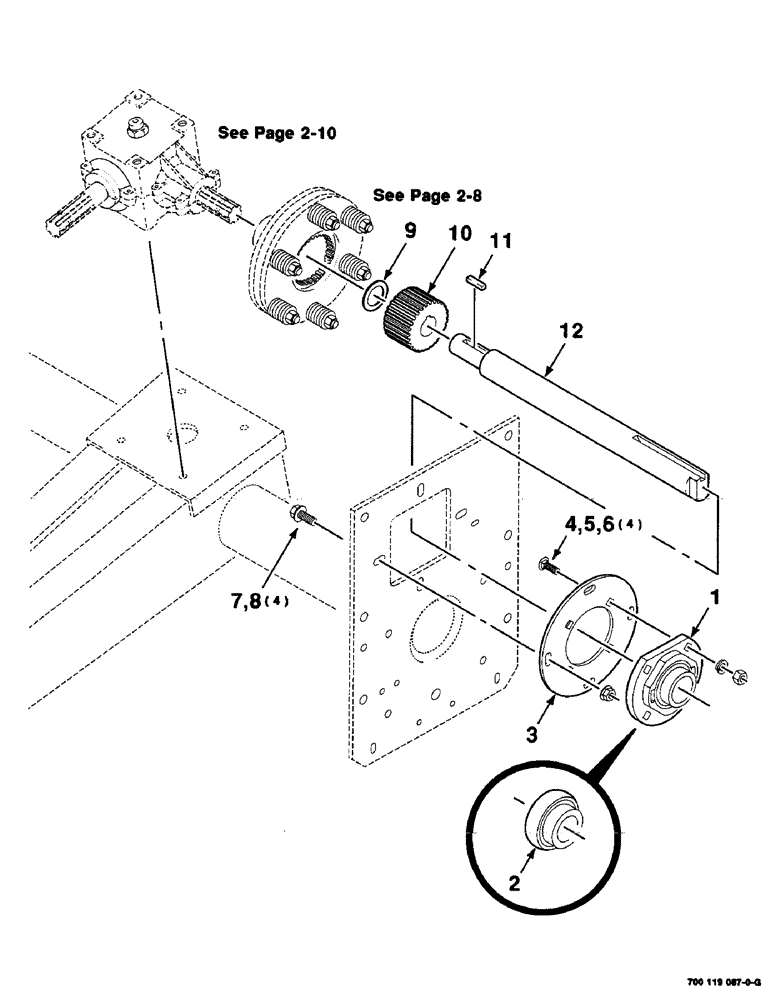

Запчасти Case IH 8455T (2-06) - DRIVE SHAFT ASSEMBLY, CLUTCH Driveline

1

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (Includes item 2)

1шт.

2

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING

1шт.

3

700126762

PLATE

1шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

700713757

WASHER

- nylon

1шт.

10

700129404

HUB

1шт.

11

700129407

BUCKET TOOTH KEY

5/16 X 5/16 X 1-1/2 KEY - special

1шт.

12

700116057

SHAFT

1шт.
