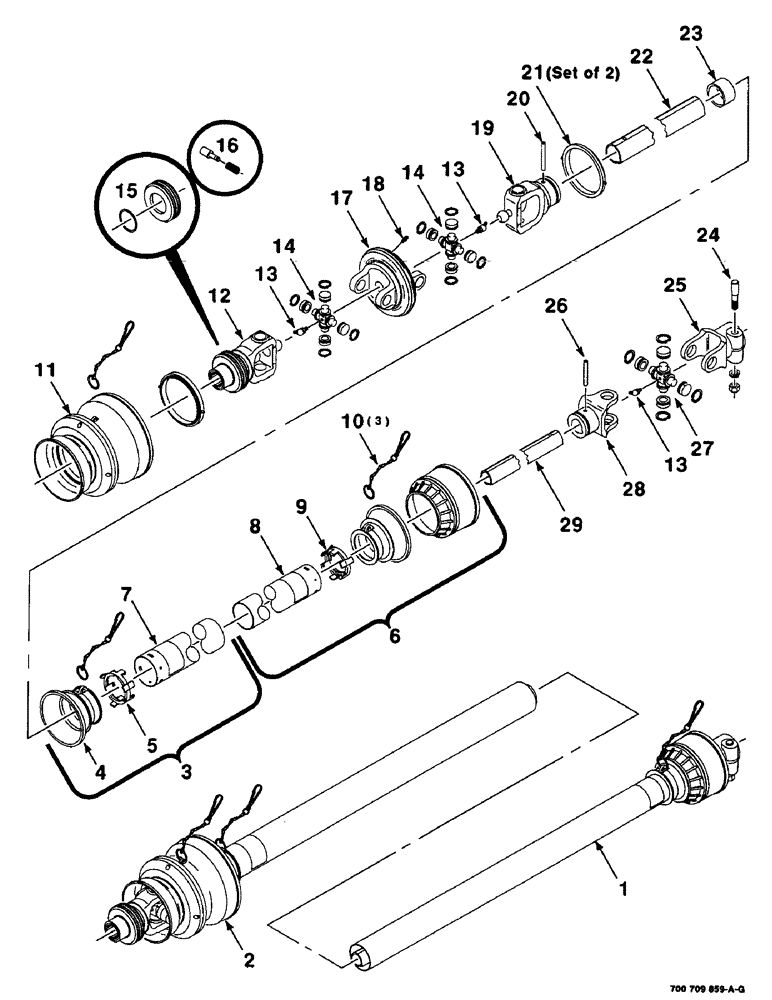

Запчасти Case IH 8455T (2-02) - IMPLEMENT DRIVELINE ASSEMBLY, BONDIOLI, SERIAL NUMBER CFH0080001 THROUGH CFH0080365 Driveline

1

700709855

PTO

IMPLEMENT HALF ASSEMBLY

1шт.

2

700709854

PTO

TRACTOR HALF ASSEMBLY (540 RPM)

1шт.

3

700709856

SHIELD

ASSEMBLY (Includes items 4 & 5)

1шт.

4

700712468

SHIELD

CONE - safety

1шт.

5

700707189

SHIELD

BEARING - shield, outer

1шт.

6

700709858

SHIELD

ASSEMBLY - implement (Includes item 9)

1шт.

7

80672C1

DECAL

- danger, PTO

1шт.

8

1326528C1

DECAL

- danger, shield missing

1шт.

9

700707188

INNER SHIELD

BEARING - shield, inner

1шт.

10

1326632C1

CHAIN

- safety

3шт.

11

700709053

CONE

SHIELD - CV

1шт.

12

700709040

FORK

YOKE ASSEMBLY - tractor (1-3/8 x 6 Spline-540 RPM)

1шт.

700710341

FORK

YOKE ASSEMBLY - tractor (1-3/8 x 21 Spline-1000 RPM)

1шт.

700710342

FORK

YOKE ASSEMBLY - tractor (1-3/4 x 20 Spline-1000 RPM)

1шт.

13

700707193

NIPPLE, LUBE

ZERK

3шт.

14

700709041

CROSS

AND BEARING KIT

2шт.

15

700707181

COLLAR

AND SNAP RING

1шт.

16

1311950C1

KIT

PUSH PIN AND SPRING

1шт.

17

700709042

BODY

- CV

1шт.

18

700707187

NIPPLE, LUBE

ZERK

1шт.

19

700709851

FORK

YOKE

1шт.

20

763847

PIN

- spring

1шт.

21

700709047

SHIELD

RING - bearing (Set of two)

1шт.

22

700709852

TUBE

- drive, outer

1шт.

23

700707175

NUT

COLLAR - grease

1шт.

24

700714385

PIN

BOLT - taper, pin

1шт.

25

700709853

FORK

YOKE - implement (Includes item 24)

1шт.

26

700707194

PIN

- spring

1шт.

27

700707171

CROSS

AND BEARING KIT

1шт.

28

700707172

TUBE

YOKE - tube, inner

1шт.

29

700707173

TUBE

- drive, inner

1шт.
