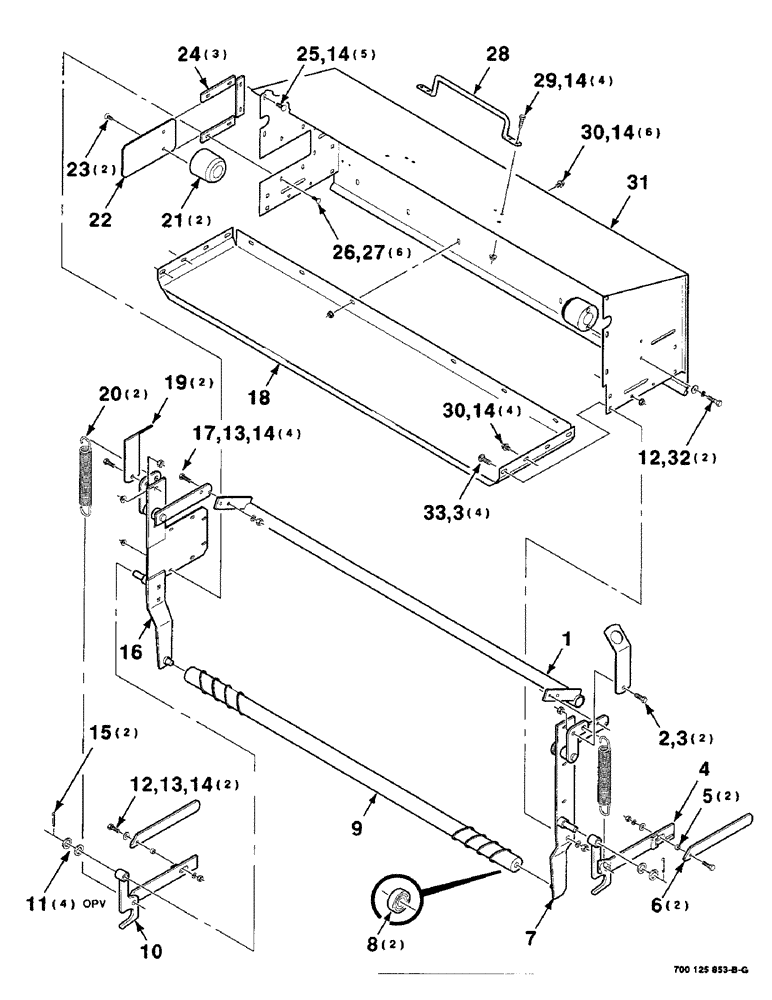

Запчасти Case IH 8455T (9-54) - MESH WRAP BOX ASSEMBLY, SERIAL NUMBER CFH0084546 THROUGH CFH0084585 Decals & Attachments

1

700125873

PIPE

WA

1шт.

2

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

4

700125770

LATCH

WA - left

1шт.

5

51200205

SPACER

2шт.

6

700125777

HANDLE

2шт.

7

700128333

SUPPORT

WA - left

1шт.

8

700710877

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

BEARING

2шт.

9

700125869

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 8)

1шт.

10

700125776

LATCH

WA - right

1шт.

11

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

12

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HSHMS

4шт.

13

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

6шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

25шт.

15

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

16

700128334

SUPPORT

WA - right

1шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

18

700128309

PANEL

- floor

1шт.

19

700125846

HANGER

2шт.

20

858167

SPRING

- extension

2шт.

21

700127924

MOUNTING PARTS

MOUNTING - spool

2шт.

22

700127926

PLATE

1шт.

23

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFCHCS SPL

2шт.

24

700127925

PLATE

3шт.

25

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

26

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

6шт.

27

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

28

700710878

HANDLE

1шт.

29

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

30

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

31

700128341

LID

WA

1шт.

32

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

33

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.
