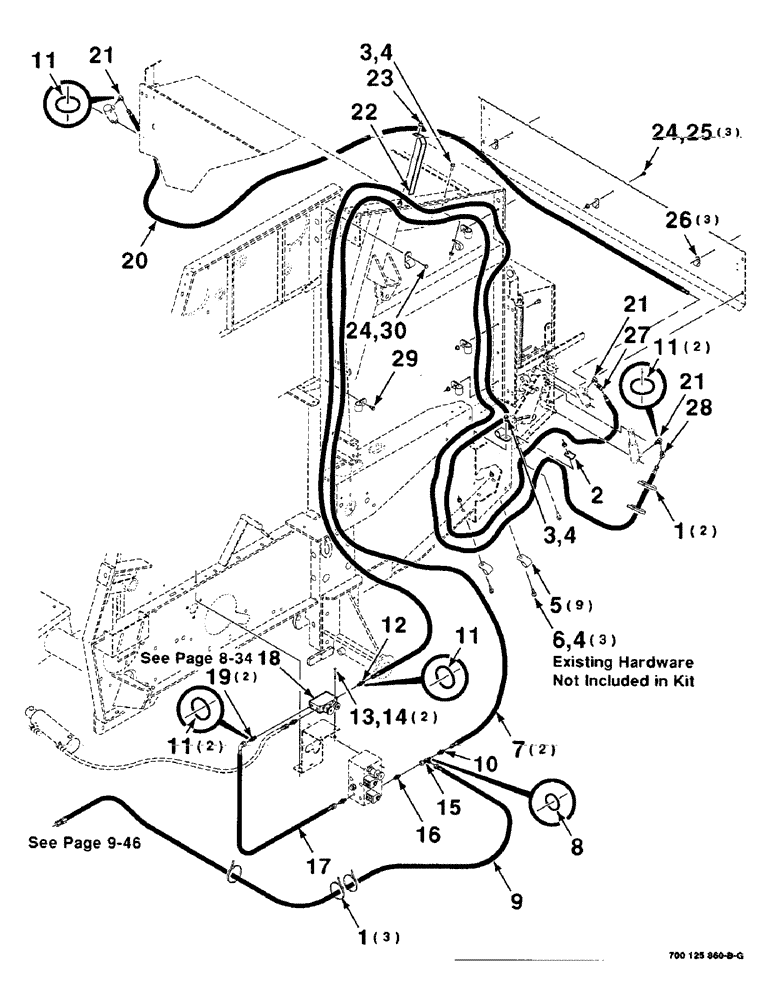

Запчасти Case IH 8455T (9-44) - MESH WRAP KIT, HYDRAULICS ASSEMBLY, MESH WRAP KITS HK50628 AND HK50902 , S.N. CFH0084546 AND LATER Decals & Attachments

HK50902

MESH WRAP KIT COMPLETE (S.N. CFH0084546 and later)

1шт.

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

2

489898

BRACKET

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

9шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

7

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

2шт.

8

738468

O-RING

1шт.

9

812382C1

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

10

700715895

REDUCER

ADAPTER - reducer, 9/16-7/16 JIC

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

6шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, HYD, (Incl. item 11) 7/16"-20, 37º x 7/16"-20, O-Ring

1шт.

13

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

14

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

15

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

hydraulic (Includes item 8) 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short Str Thd

1шт.

17

7892029

HOSE

- hydraulic

1шт.

18

700711967

VALVE

ASSEMBLY - control

1шт.

19

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR (Includes item 11)

2шт.

20

700707735

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

21

7792500

ELBOW

90 DEGREES (Includes item 11)

3шт.

22

700130845

GUIDE

1шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

24

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

25

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

26

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

3шт.

27

700701355

3 WAY CONNECTION

TEE - hydraulic (Includes item 8)

1шт.

28

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 DEGREES

1шт.

29

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.
