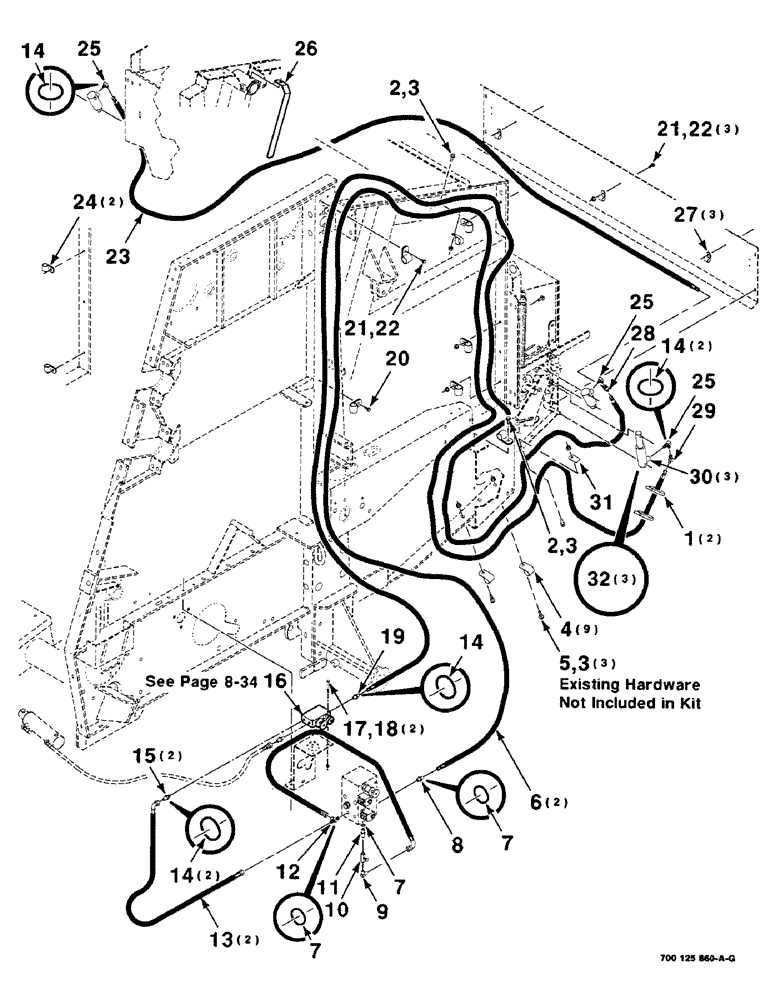

Запчасти Case IH 8455T (9-42) - MESH WRAP KIT, HYDRAULIC ASSEMBLY, MESH WRAP KITS HK50628 & HK50902, S.N. CFH0084501 THRU CFH0084545 Decals & Attachments

HK50628

ATTACHMENT

MESH WRAP KIT COMPLETE (S.N. CFH0084501 thru CFH0084545)

1шт.

HK50902

MESH WRAP KIT COMPLETE (S.N. CFH0084546 and later)

1шт.

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

3

231-5146

FLANGE NUT,3/8"-16

5шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

9шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

6

700711008

HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1

6.35 mm ID x 6600.00 mm, SAE 100R1

2шт.

7

738468

O-RING

3шт.

8

700707841

HYD CONNECTOR

CONNECTOR - hydraulic (Includes item 7)

1шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 DEGREES

1шт.

10

700711345

VALVE

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Hydraulic (Includes item 7) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

13

7892029

HOSE

- hydraulic

2шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

6шт.

15

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR (Includes item 14)

2шт.

16

700711967

VALVE

ASSEMBLY - control

1шт.

17

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, HYD, (Incl. item 14) 7/16"-20, 37º x 7/16"-20, O-Ring

1шт.

20

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

21

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

23

700707735

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

24

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

2шт.

25

7792500

ELBOW

90 DEGREES (Includes item 14)

3шт.

26

700130845

GUIDE

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

3шт.

28

700701355

3 WAY CONNECTION

TEE - hydraulic

1шт.

29

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 DEGREES

1шт.

30

700710874

CYLINDER

- hydraulic

3шт.

31

489898

BRACKET

1шт.

32

700710941

SEAL KIT

KIT - seal

3шт.
