(9-30) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 700712122 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE

Запчасти Case IH 8455T (9-30) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 700712122 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE Decals & Attachments

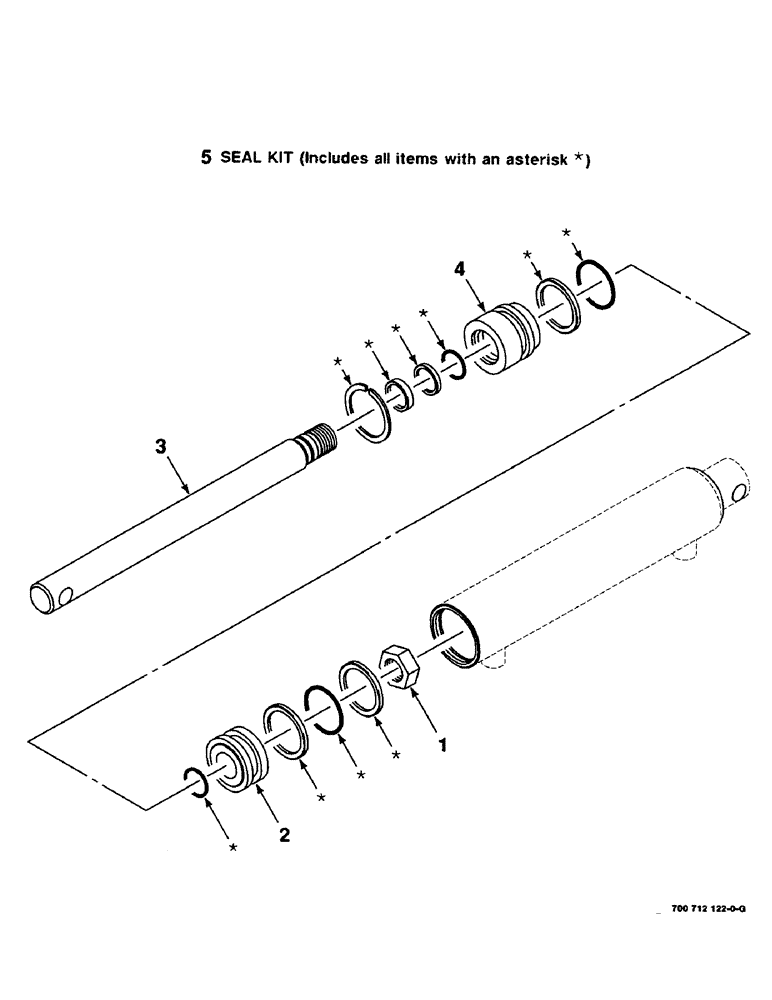

Схема запчастей Case IH 8455T - (9-30) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP, 700712122 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 8" STROKE Decals & Attachments
1
5
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712122

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 8 inch stroke)

1шт.

1

700707418

JAM NUT

7/8-14 JAM NUT

1шт.

2

700707419

PISTON

1шт.

3

700709465

ROD

- piston

1шт.

4

700711112

GUIDE

- rod

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
