(9-24) - SHORT CROP KIT, HK50459 SHORT CROP KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY

Запчасти Case IH 8455T (9-24) - SHORT CROP KIT, HK50459 SHORT CROP KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

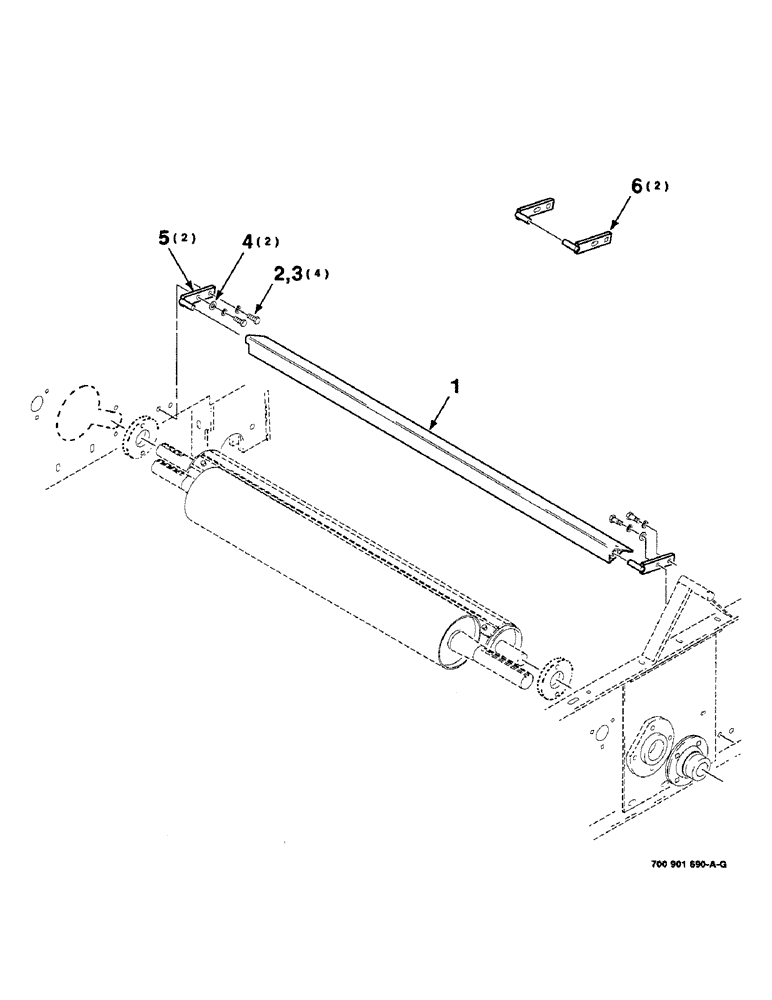

Схема запчастей Case IH 8455T - (9-24) - SHORT CROP KIT, HK50459 SHORT CROP KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
3
4
2
6
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK50459

ATTACHMENT

SHORT CROP KIT COMPLETE

1шт.

1

700117751

FILLER

WA

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

5

700125010

STRAP

WA

2шт.

6

1668243

STRAP

WA

2шт.
