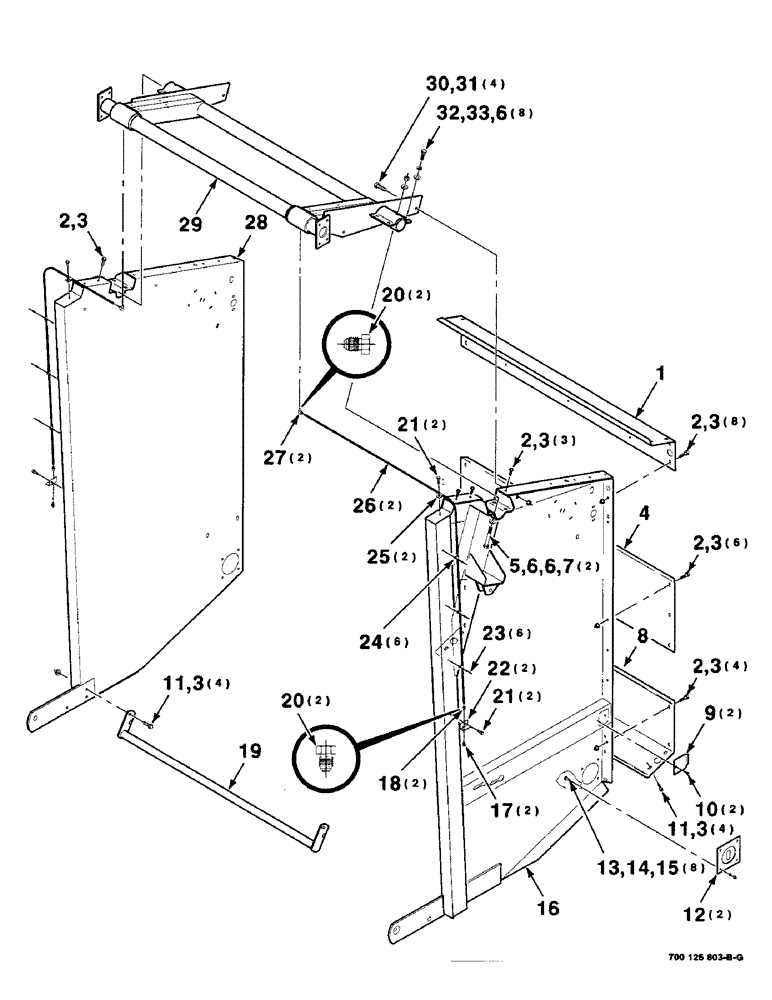

Запчасти Case IH 8455T (5-06) - TAILGATE ASSEMBLY, 700130925 TAILGATE ASSEMBLY COMPLETE, SERIAL NUMBER CFH0080206 AND LATER (16) - BALE EJECTOR

700130925

SUPPORT ASSY.

TAILGATE ASSEMBLY COMPLETE

1шт.

1

700124622

SUPPORT

- tailgate

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

22шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

30шт.

4

700114352

SUPPORT

- SMV (Includes decals)

1шт.

5

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

12шт.

7

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

8

700114350

SUPPORT

- tailgate

1шт.

9

700125158

LARGE PLATE

PLATE

2шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

2шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

12

700125148

PLUG

2шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

15

425-105

NUT,5/16"-18, G5

8шт.

16

700129154

PANEL

SIDE WA - tailgate, left (S.N. CFH0080206 thru CFH0080405)

1шт.

700130860

SIDE ASSY.

SIDE WA - left, tailgate (S.N. CFH0080406 and later)

1шт.

17

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

18

8746778

TUBE NUT

CONNECTOR (Includes item 20)

2шт.

19

700122471

SUPPORT

GUIDE WA

1шт.

20

219-302

TUBE NUT

- compression

4шт.

21

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

4шт.

22

700126887

SUPPORT

WA

2шт.

23

64667

FLEXIBLE HOSE

POP RIVET

6шт.

24

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

6шт.

25

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

26

700124624

TUBE,0.125" OD, 50.787" Length

- copper

2шт.

27

51200288

ELBOW

(Includes item 20)

2шт.

28

700129162

PANEL

SIDE WA - tailgate, right

1шт.

29

700129172

SUPPORT

WA

1шт.

30

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.
