Запчасти Case IH 8455T (9-06) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0080366 AND LATER Decals & Attachments

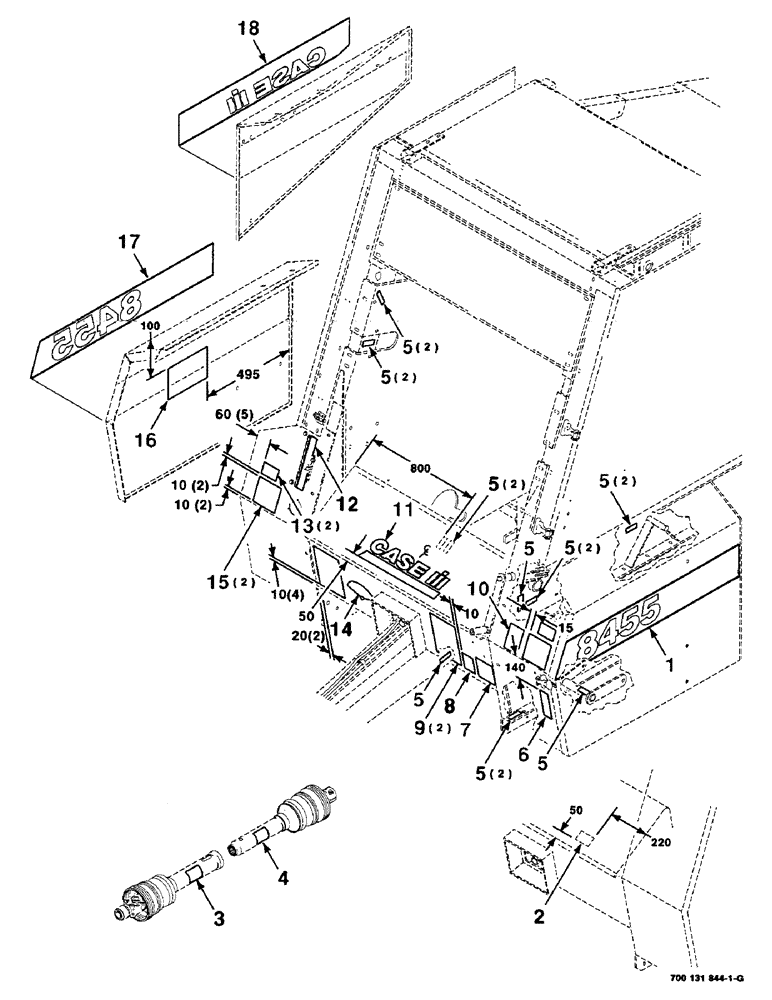

Схема запчастей Case IH 8455T - (9-06) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0080366 AND LATER Decals & Attachments
5
9
5
7
6
5
8
5
13
5
5
3
5
12
4
10
2
17
1
11
15
16
18
5
5

Артикул

Название

Примечание

Количество

1

700714312

DECAL

- combo, left, front

1шт.

2

700710321

DECAL

- spring

1шт.

3

80672C1

DECAL

- danger, powerline

1шт.

4

1326528C1

DECAL

- danger, shield missing

1шт.

5

7889306

DECAL

- lube

15шт.

6

878694

REFLECTOR

- amber

1шт.

7

878157

DECAL

- notice

1шт.

8

7179641

DECAL

- patent

1шт.

9

8888398

DECAL

- danger

2шт.

10

700709165

DECAL

- information

1шт.

11

192848A2

DECAL

- Case IH

1шт.

12

700706193

DECAL

- dial

1шт.

13

7778202

DECAL

- oil chains

2шт.

14

700707207

DECAL

- dial, indicator

1шт.

15

700714229

DECAL

- warning

2шт.

16

700713667

DECAL

- information

1шт.

17

700714314

DECAL

- combo, right, front

1шт.

18

700714315

DECAL

- combo, right, rear

1шт.

Выбрано товаров: 18
