Запчасти Case IH 8455T (6-12) - ROLLERS AND FORMING BELT GUIDE ASSEMBLIES, UPPER (14) - BALE CHAMBER

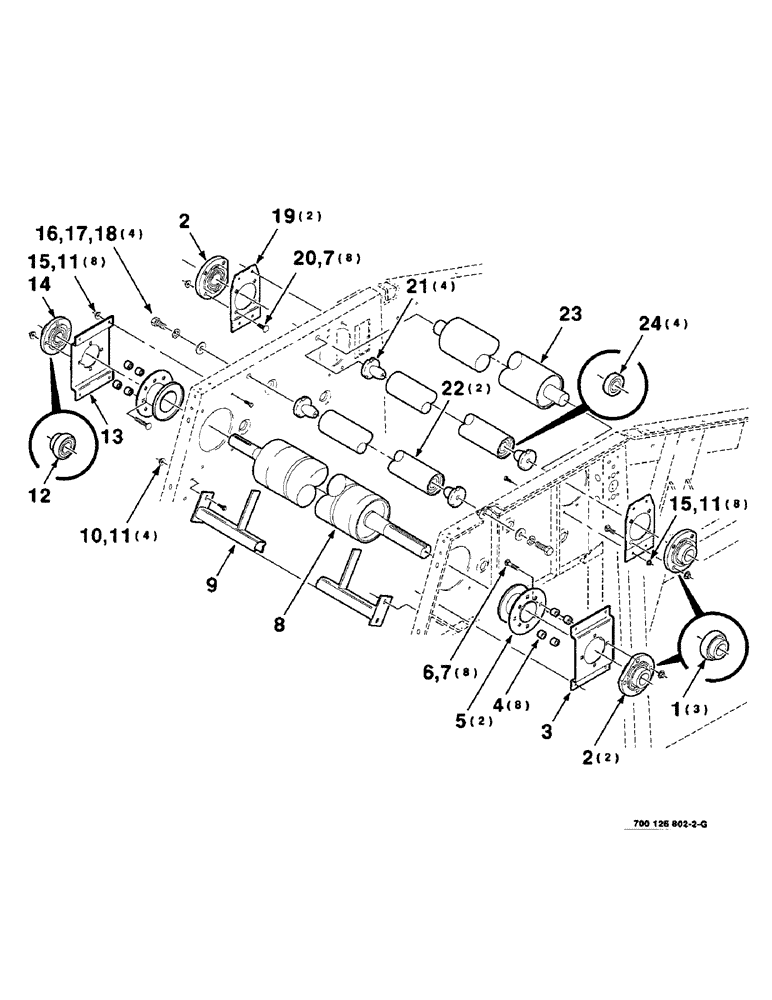

Схема запчастей Case IH 8455T - (6-12) - ROLLERS AND FORMING BELT GUIDE ASSEMBLIES, UPPER (14) - BALE CHAMBER
15
8
9
6
12
14
13
3
17
2
19
4
7
7
20
24
11
23
15
2
18
11
11
21
1
5
22
16
10

Артикул

Название

Примечание

Количество

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

3шт.

2

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

BEARING ASSEMBLY (Includes item 1)

3шт.

3

700107963

SUPPORT

- upper, left

1шт.

4

700126902

SPACER

8шт.

5

700124609

FLANGE

RING WA - grass

2шт.

6

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

8шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

8

700712173

ROLLER

ASSEMBLY - rubber

1шт.

9

700107929

GUIDE

WA

1шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

11

231-5146

FLANGE NUT,3/8"-16

20шт.

12

51318

BEARING

- spherical

1шт.

13

700107964

SUPPORT

- upper, right

1шт.

14

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes item 12)

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

16шт.

16

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

18

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

19

700114406

PLATE

SUPPORT - upper

2шт.

20

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

21

700100927

HUB

4шт.

22

700116217

ROLL

ER ASSEMBLY (Includes item 24)

2шт.

23

700114370

ROLLER

WA

1шт.

24

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

Выбрано товаров: 24
