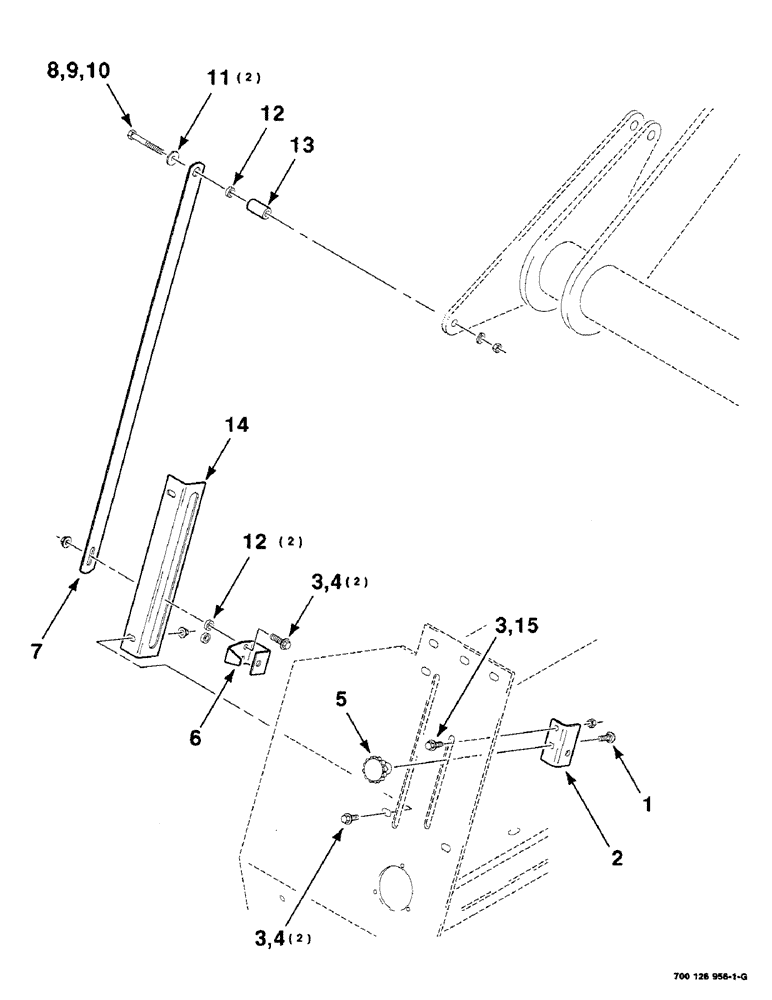

Запчасти Case IH 8455T (6-02) - INDICATOR ASSEMBLY, BALE SIZE (14) - BALE CHAMBER

1

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

2

700115974

SUPPORT

- switch

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

5

700707234

BUTTON

KNOB

1шт.

6

700115976

INDICATOR

1шт.

7

700115990

LINK

1шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

1шт.

11

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

12

700115973

SPACER

3шт.

13

6605174

TUBE,19.05 mm OD, 35 mm Length

SPACER

1шт.

14

700115983

ANGLE

1шт.

15

231-4115

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.
