Запчасти Case IH 8455T (7-28) - MESH WRAP SHIELDS AND DECAL ASSEMBLIES, SERIAL NUMBER CFH0084571 AND LATER (12) - MAIN FRAME

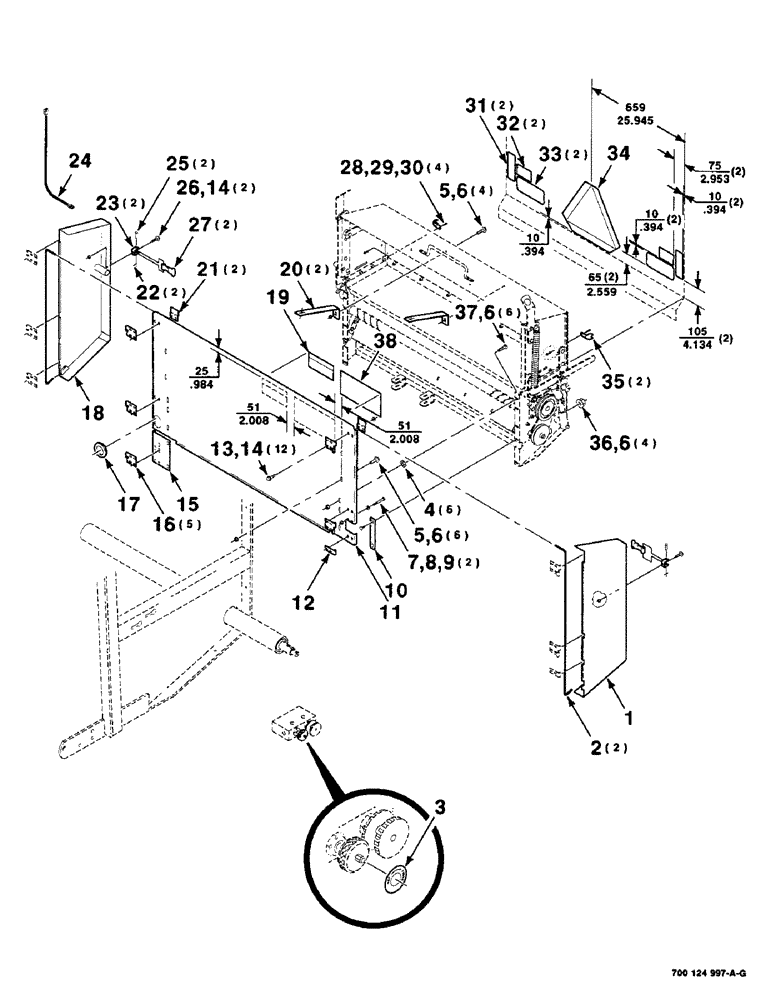

Схема запчастей Case IH 8455T - (7-28) - MESH WRAP SHIELDS AND DECAL ASSEMBLIES, SERIAL NUMBER CFH0084571 AND LATER (12) - MAIN FRAME
34
15
8
37
28
6
22
25
17
13
2
32
9
30
35
6
7
14
6
11
38
12
14
21
16
10
3
1
5
24
4
36
33
26
18
6
29
31
5
19
23
20
27

Артикул

Название

Примечание

Количество

1

700124566

SHIELD

WA - left

1шт.

2

700711948

SPRING

- torsion

2шт.

3

700711189

DECAL

- Net-Twine

1шт.

4

700711334

FASTENER

- push on

6шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

10шт.

6

231-5146

FLANGE NUT,3/8"-16

20шт.

7

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

10

700125893

PLATE

1шт.

11

700131988

SHIELD

1шт.

12

700130846

HINGE

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

14шт.

15

700125719

SHIELD

1шт.

16

700124551

HINGE

- support

5шт.

17

727248

GROMMET

- rubber

1шт.

18

700124567

SHIELD

WA - right

1шт.

19

700711130

DECAL

- notice

1шт.

20

700136023

SUPPORT

2шт.

21

700124553

PLATE

HOLDDOWN

2шт.

22

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

23

776674

SUPPORT

ANCHOR

2шт.

24

700711083

HARNESS

- wire

1шт.

25

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

26

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

27

494307C1

LATCH

HOOK - rubber

2шт.

28

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

29

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

30

225-14110

NUT,#10-24

4шт.

31

878660

REFLECTOR

- red

2шт.

32

700711322

DECAL

- caution

2шт.

33

700706191

DECAL

- warning, injury

2шт.

34

311858A1

DECAL

SMV EMBLEM

1шт.

35

7025075

BRACKET

2шт.

36

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

37

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

6шт.

38

700711129

DECAL

- operational

1шт.

Выбрано товаров: 38
