Запчасти Case IH 8455T (7-26) - MESH WRAP BOX AND ROLLER DRIVE ASSEMBLIES, SERIAL NUMBER CFH0084571 AND LATER (12) - MAIN FRAME

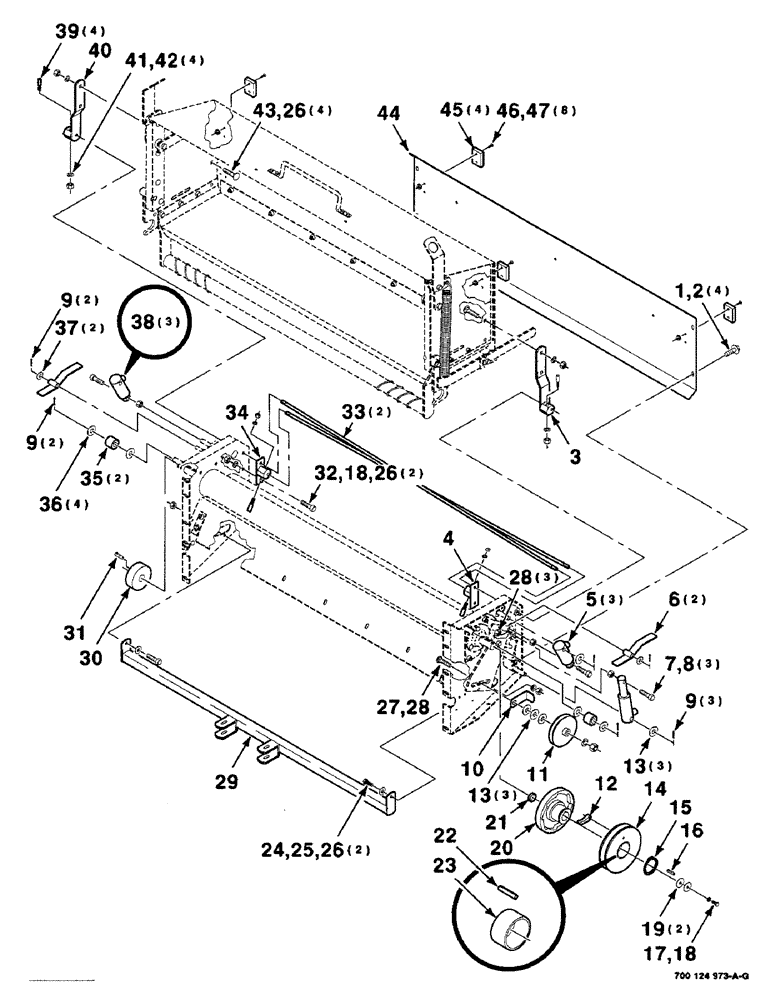

Схема запчастей Case IH 8455T - (7-26) - MESH WRAP BOX AND ROLLER DRIVE ASSEMBLIES, SERIAL NUMBER CFH0084571 AND LATER (12) - MAIN FRAME
28
16
23
26
38
5
43
4
9
26
40
15
3
39
19
18
33
31
12
25
24
10
35
28
30
2
6
27
1
26
44
34
41
11
45
37
14
20
17
21
13
32
9
36
13
7
42
29
9
46
8
18
47
22

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

3

700125752

HINGE

WA - left

1шт.

4

700125756

ADAPTER

WA - left

1шт.

5

700710874

CYLINDER

- hydraulic

3шт.

6

700125750

LATCH

WA

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

7шт.

10

700125855

GUIDE

- belt

1шт.

11

54833

FRONT IDLER

IDLER - V

1шт.

12

700127932

PAWL

1шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

14

700127931

SHEAVE

ASM. (Includes items 22 & 23)

1шт.

15

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

16

Q10

KEY,1/4" Sq x 1 3/8"

1/4 X 1/4 X 1-3/8 KEY

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

700710049

WASHER

3/8 FENDER WASHER

2шт.

20

700127930

HUB

- ratchet

1шт.

21

700127933

SPACER

1шт.

22

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

23

700713302

BRONZE BUSHING,44.552 mm ID x 50.902 mm OD x 25.527 mm

BEARING - bronze

1шт.

24

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

25

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

26

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

27

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

28

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

29

700125866

SUPPORT

WA

1шт.

30

700125830

DRUM

- brake

1шт.

31

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

33

700125913

SPRING

- torsion

2шт.

34

700125759

ADAPTER

WA - right

1шт.

35

700710931

BUSHING

2шт.

36

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

37

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

38

700710941

SEAL KIT

KIT - seal

3шт.

39

700125760

WEDGE

4шт.

40

700125755

HINGE

WA - right

1шт.

41

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

42

425-104

NUT,1/4"-20, Cl 5

4шт.

43

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

44

700131986

SHIELD

1шт.

45

700710930

PAD

4шт.

46

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

8шт.

47

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

Выбрано товаров: 47
