Запчасти Case IH 8455T (7-24) - MESH WRAP ROLLER MOUNTING ASSEMBLY (12) - MAIN FRAME

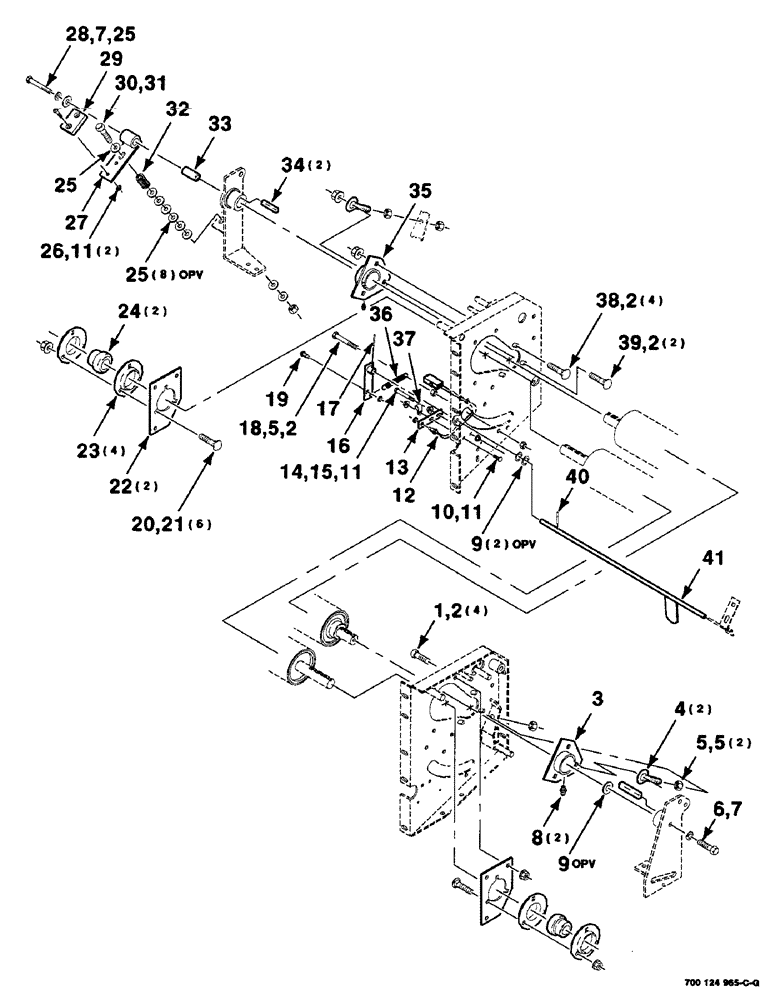

Схема запчастей Case IH 8455T - (7-24) - MESH WRAP ROLLER MOUNTING ASSEMBLY (12) - MAIN FRAME
25
15
20
6
2
35
16
25
7
2
14
11
12
7
32
27
38
8
5
25
19
13
37
9
40
39
24
5
17
36
3
41
18
23
4
22
1
34
2
28
11
9
5
31
29
21
26
2
11
30
33
10

Артикул

Название

Примечание

Количество

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

11шт.

3

700125909

SUPPORT

WA - left

1шт.

4

296608

BOLT,3/8" - 16 x 2"

- eye

2шт.

5

425-106

NUT,3/8"-16, Cl 5

5шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

10

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

1шт.

11

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

12

700119161

SWITCH

ASSEMBLY

1шт.

13

700125910

MOUNTING PARTS

MOUNT - switch

1шт.

14

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

16

700124563

MOUNTING PARTS

MOUNTING WA

1шт.

17

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

700710211

ACTUATOR

1шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

21

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

6шт.

22

700125720

PLATE

2шт.

23

50567

RATCHET

4шт.

24

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

2шт.

25

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

10шт.

26

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 2 Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

27

700125828

SUPPORT

WA - brake

1шт.

28

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

29

700710930

PAD

- brake

1шт.

30

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

31

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

32

58107

SPRING

- compression

1шт.

33

700109003

BUSHING

1шт.

34

T13450

KEY

1/4 X 1-1/4 KEY

2шт.

35

700125721

SUPPORT

WA - right

1шт.

36

7758915

SPRING

- extension

1шт.

37

751321

CLAMP

- line

1шт.

38

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

39

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

40

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

41

700124565

SHAFT

WA

1шт.

Выбрано товаров: 41
