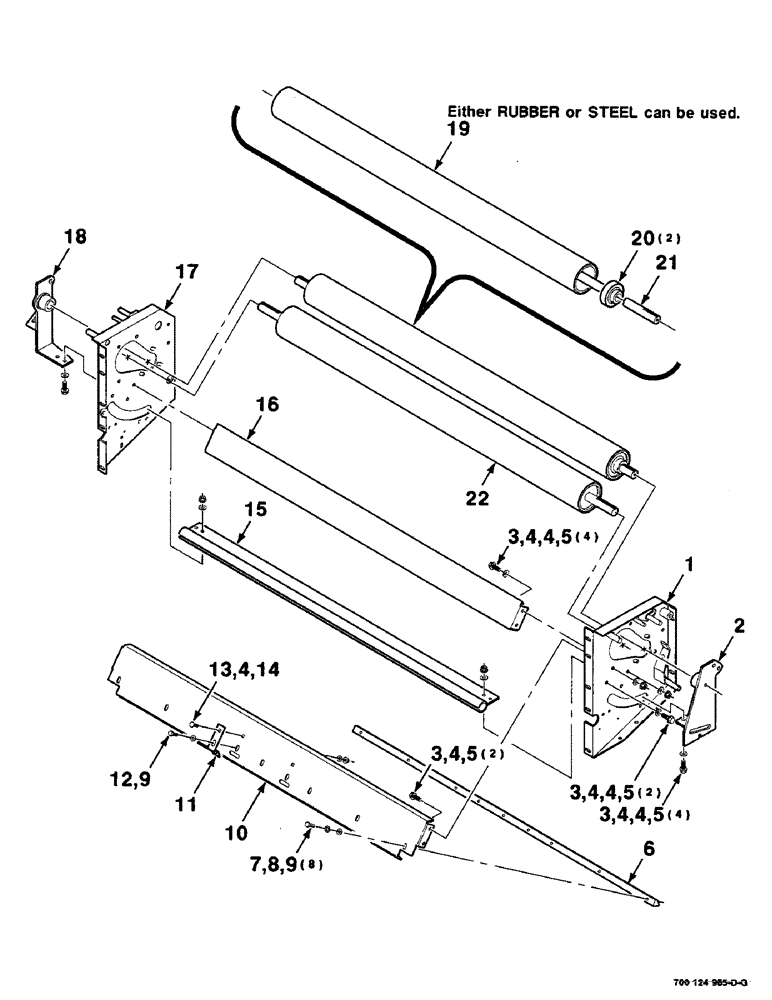

Запчасти Case IH 8455T (7-22) - MESH WRAP ROLLER ASSEMBLY (12) - MAIN FRAME

1

700124962

PANEL

WA - left

1шт.

2

700125821

SUPPORT

WA - left

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

12шт.

4

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

23шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

6

700125882

BUMPER

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

9шт.

10

700124984

SUPPORT

1шт.

11

700125817

SUPPORT

WA

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

15

700124983

KNIFE

WA

1шт.

16

700124981

SUPPORT

1шт.

17

700124963

PANEL

WA - right

1шт.

18

700125825

SUPPORT

WA - right

1шт.

19

700125888

ROLLER ASSY.

ROLLER WA (Rubber) (S.N. CFH0084501 thru CFH0084585)

1шт.

700130746

ROLLER

WA (Steel) (S.N. CFH0084586 and later)

1шт.

20

51680

BEARING, BALL

BEARING

2шт.

21

700125892

SHAFT

1шт.

22

700125885

ROLLER ASSY.

ROLLER ASSEMBLY (S.N. CFH0084501 thru CFH0084585)

1шт.

700127935

ROLLER

ASM. (Overrunning clutch) (S.N. CFH0084586 and later)

1шт.
