(9-02) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0080001 THROUGH CFH0080365

Запчасти Case IH 8455T (9-02) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0080001 THROUGH CFH0080365 Decals & Attachments

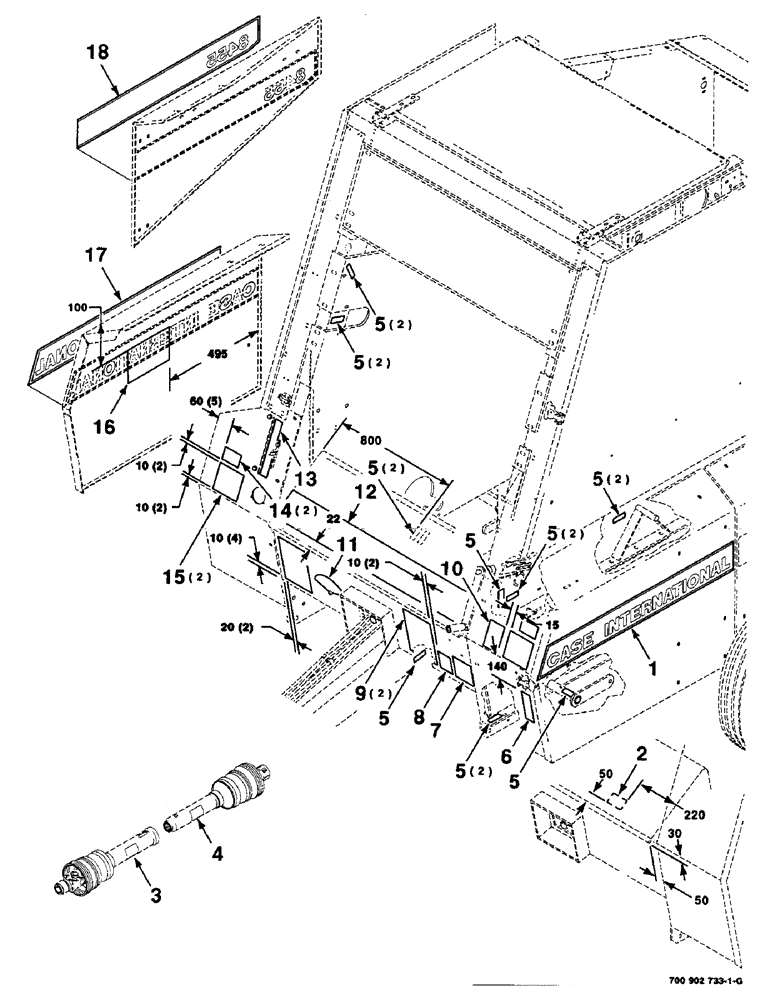

Схема запчастей Case IH 8455T - (9-02) - DECALS AND LOCATION DIAGRAM, FRONT, SERIAL NUMBER CFH0080001 THROUGH CFH0080365 Decals & Attachments
12
14
4
1
5
16
11
5
13
17
8
15
5
3
9
5
2
5
7
5
5
5
6
18
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700710019

DECAL

- combo, left, front

1шт.

2

700710321

DECAL

- spring

1шт.

3

80672C1

DECAL

- danger, powerline

1шт.

4

1326528C1

DECAL

- danger, shield missing

1шт.

5

7889306

DECAL

- lube

15шт.

6

878694

REFLECTOR

- amber

1шт.

7

878157

DECAL

- notice

1шт.

8

7179641

DECAL

- patent

1шт.

9

8888398

DECAL

- danger

2шт.

10

700709165

DECAL

- information

1шт.

11

700707207

DECAL

- dial, indicator

1шт.

12

1976036C1

DECAL

- stripe, front

1шт.

13

700706193

DECAL

- dial

1шт.

14

7778202

DECAL

- oil chains

2шт.

15

700714229

DECAL

- warning

2шт.

16

700710978

DECAL

- information (S.N. CFH0080001 thru CFH0080205)

1шт.

700713667

DECAL

- information (S.N. CFH0080206 and later)

1шт.

17

700710021

DECAL

- combo, right, front

1шт.

18

700711785

DECAL

- combo, right, rear

1шт.
