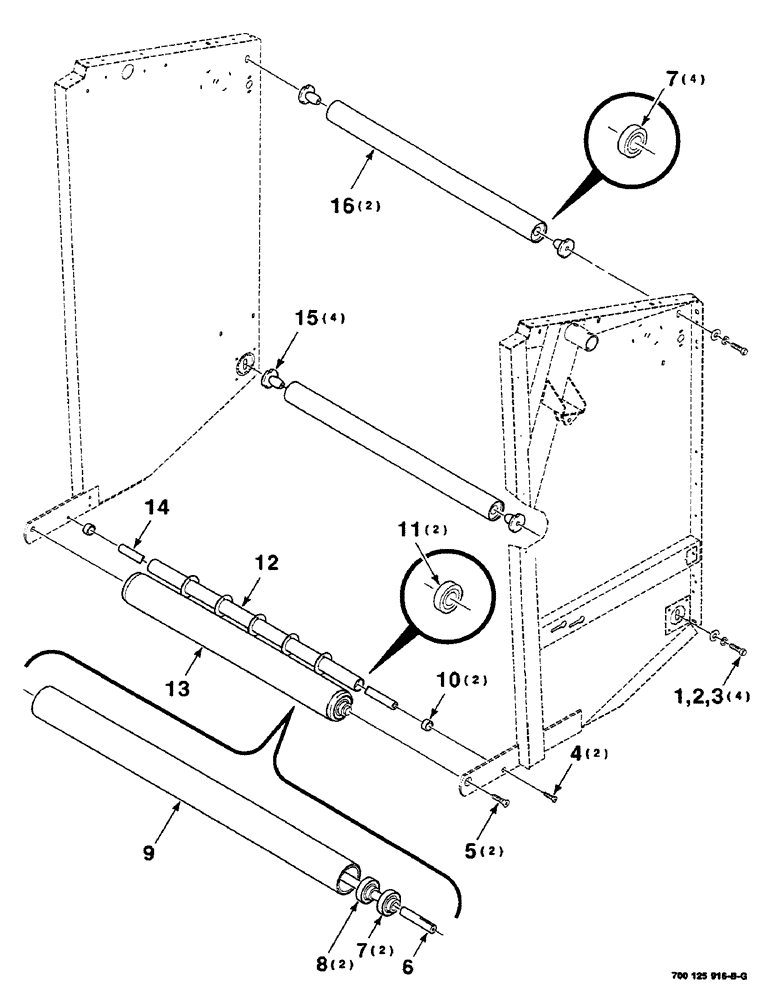

Запчасти Case IH 8455 (5-08) - TAILGATE ROLLER ASSEMBLY (16) - BALE EJECTOR

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 x 1-1/4 HSFCHCS (S.N. CFH0078501 thru CFH0078655)

2шт.

1703453

BOLT,Flat Hd, Csk, 1/2" - 13 x 1 1/4"

1/2-13 x 1-1/4 HSFCHCS (S.N. CFH0078656 and later)

2шт.

5

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

2шт.

6

700130858

SHAFT

1шт.

7

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

8

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - cylindrical

2шт.

9

700130882

ROLL

ER WA

1шт.

10

6467674

SPACER

2шт.

11

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

12

700125900

ROLLER

ASSEMBLY (Includes item 11)

1шт.

13

700130857

ROLLER

ASSEMBLY (Includes items 6, 7, 8, & 9)

1шт.

14

700119683

SHAFT

- roller (S.N. CFH0078501 thru CFH0078655)

1шт.

700129348

SHAFT

- roller (S.N. CFH0078656 and later)

1шт.

15

700100927

HUB

4шт.

16

700116217

ROLL

ER ASSEMBLY (Includes item 7)

2шт.
