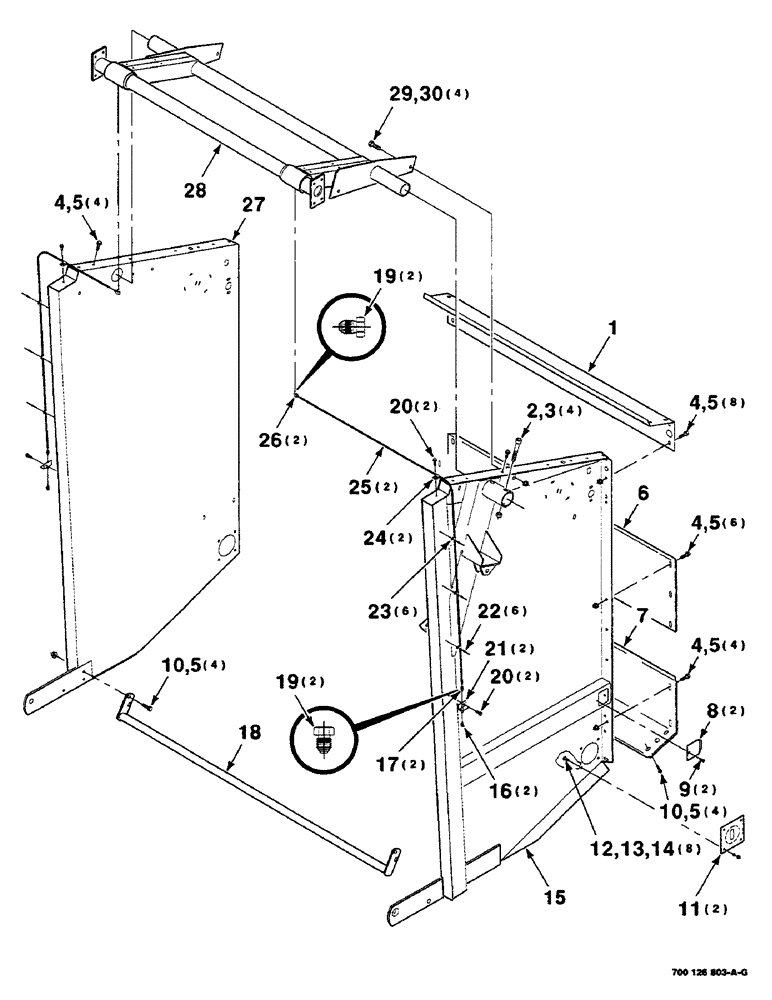

Запчасти Case IH 8455 (5-04) - TAILGATE ASSEMBLY, (S.N. CFH0078501 THRU CFH0078655) (16) - BALE EJECTOR

1

700124622

SUPPORT

- tailgate

1шт.

2

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 x 3-1/4 HSHCS SPL

4шт.

3

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

4шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 x 3/4 HWHMS

22шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

30шт.

6

700114352

SUPPORT

- SMV

1шт.

7

700114350

SUPPORT

- tailgate

1шт.

8

700125158

LARGE PLATE

PLATE

2шт.

9

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 x 1/2 HWHTCTS

2шт.

10

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

11

700125148

PLUG

2шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

425-105

NUT,5/16"-18, G5

8шт.

15

700124620

SIDE ASSY.

SIDE WA - tailgate, left

1шт.

16

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

17

8746778

TUBE NUT

CONNECTOR (Includes item 19)

2шт.

18

700122471

SUPPORT

GUIDE WA

1шт.

19

219-302

TUBE NUT

- compression

4шт.

20

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 x 1/2 HWHTCTS

4шт.

21

700126887

SUPPORT

WA

2шт.

22

51200829

RIVET

POP RIVET

6шт.

23

A62209

CLAMP,5/16", Insul, 1/4" Bolt

6шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

25

700128300

TUBE,0.125" OD, 120" Length

- copper (10 Foot bulk)

2шт.

26

51200288

ELBOW

(Includes item 19)

2шт.

27

700124621

SIDE ASSY.

SIDE WA - tailgate, right

1шт.

28

700127000

SUPPORT

WA

1шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
