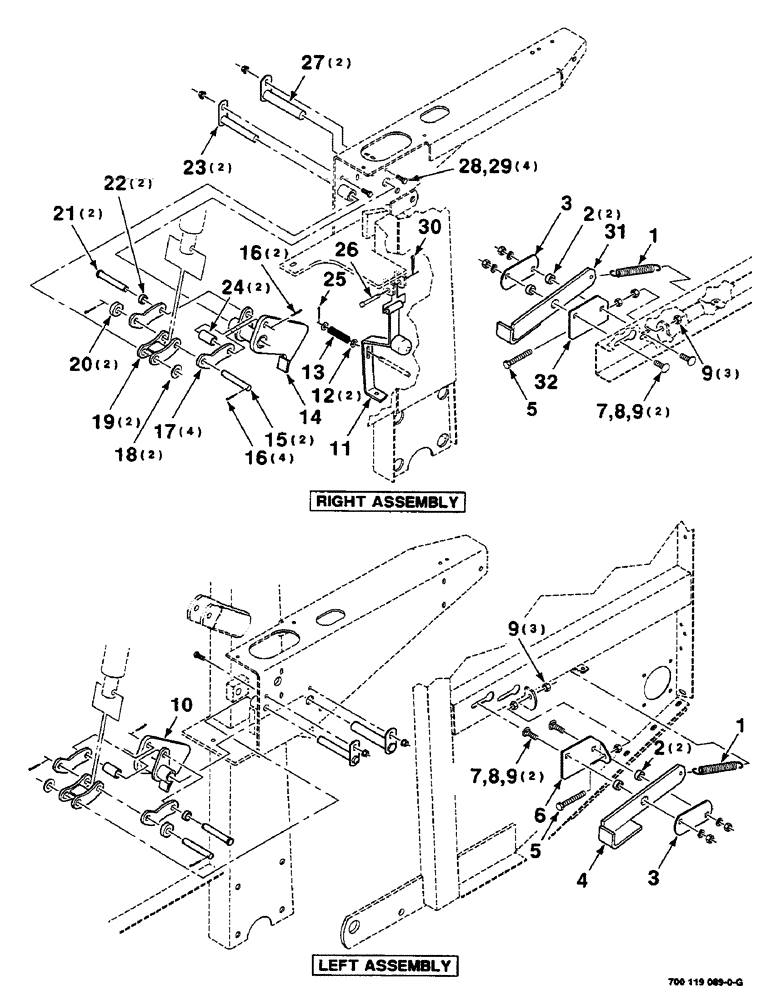

Запчасти Case IH 8455 (5-02) - TAILGATE LATCH ASSEMBLY (16) - BALE EJECTOR

1

758441

SPRING

- extension

2шт.

2

6287155

SPACER

4шт.

3

700115942

PLATE

2шт.

4

700119111

LATCH

WA - left

1шт.

5

873422

CAPSCREW,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

1/2-13 x 3-1/2 FTC

2шт.

6

700119092

SUPPORT

- left

1шт.

7

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 RHSNB

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

415-108

1/2-13 H

10шт.

10

700119106

LATCH

WA - left

1шт.

11

700119957

SUPPORT

WA - switch

1шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

13

700707978

SPRING

1шт.

14

700119108

LATCH

WA - right

1шт.

15

700115939

PIN

2шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

6шт.

17

700115941

LINK

4шт.

18

195-2117

WASHER,13/16" x 1 1/2" x .134", HDN

3/4 x 10 GAUGE WRMB

2шт.

19

700115920

LINK

WA

2шт.

20

700109079

SPACER

2шт.

21

763870

CLEVIS PIN

5/8 x 4 CLEVIS PIN

2шт.

22

51200241

SPACER

2шт.

23

700115929

PIN

WA

2шт.

24

488122

SPACER

TUBE - spacer

2шт.

25

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

26

Q657

HEADED PIN,9.53mm OD x 69.85mm L

3/8 x 2-3/4 CLEVIS PIN

1шт.

27

700115918

PIN

WA

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

31

700119112

LATCH

WA - right

1шт.

32

700119093

SUPPORT

- right

1шт.
