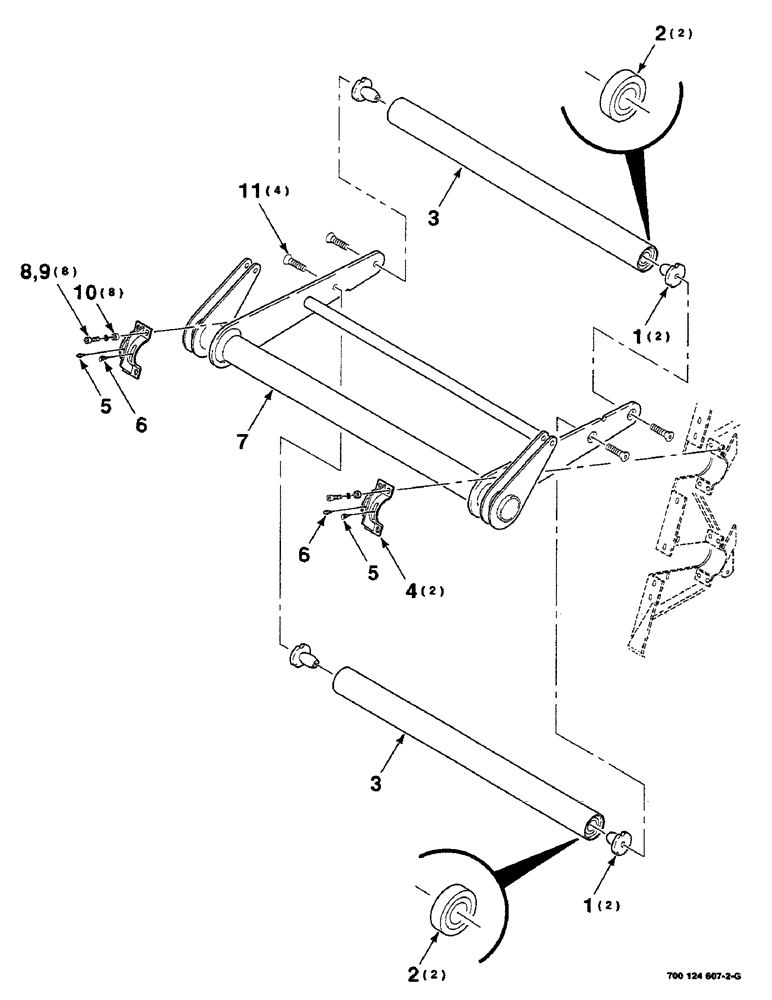

Запчасти Case IH 8455 (6-24) - BELT TENSION ROLLER ASSEMBLY (14) - BALE CHAMBER

1

700100927

HUB

4шт.

2

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

3

700107934

ROLL

ER ASSEMBLY (Includes item 2)

2шт.

4

700107957

CLAMP

WA

2шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 DEGREE ZERK

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

700118995

ARM

WA - upper

1шт.

8

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

7/16-14 x 1-1/2 HSHCS SPL

8шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

10

6520233

BUSHING

8шт.

11

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS SPL

4шт.
