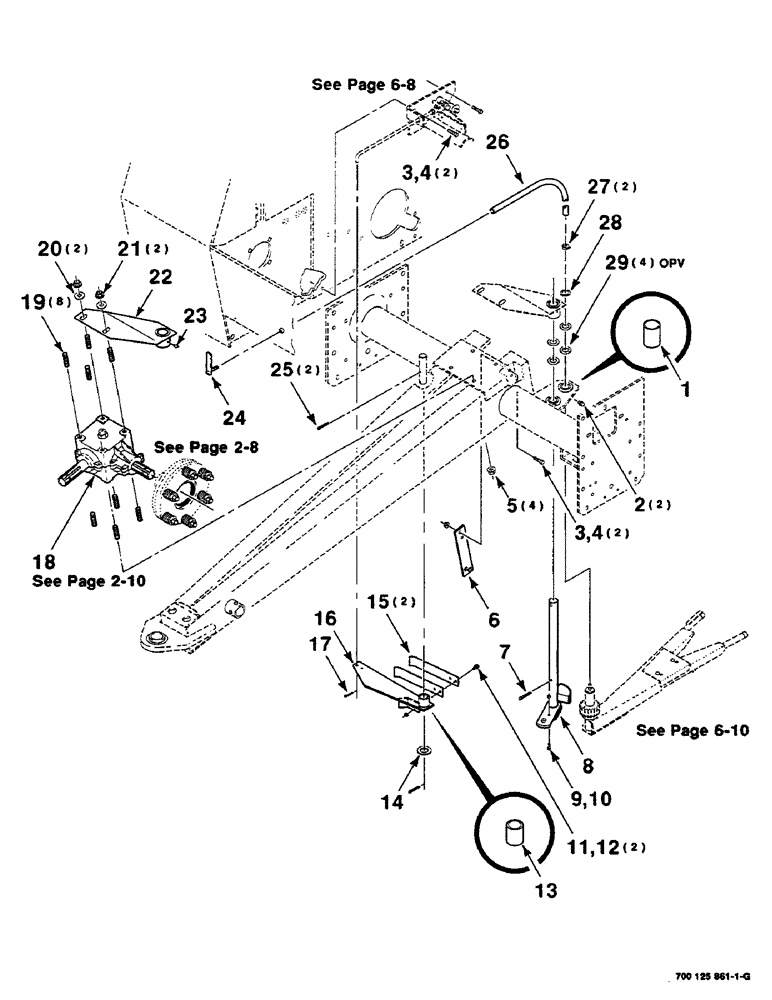

Запчасти Case IH 8455 (6-04) - GEARBOX AND THREADER MOUNTING ASSEMBLIES (14) - BALE CHAMBER

1

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- oilite

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

6

700119936

GUIDE

PLATE

1шт.

7

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

8

700126917

SHAFT

ASSEMBLY

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 x 1-1/4 C

1шт.

10

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

13

740217

BUSHING

1шт.

14

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 x 10 GAUGE NRMB

1шт.

15

700710074

LARGE PLATE

SPRING - leaf

2шт.

16

700122971

LEVER

ASSEMBLY (Includes item 13)

1шт.

17

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

18

700710131

TRANSFER BOX

GEARBOX ASSEMBLY

1шт.

19

700712789

STUD

8шт.

20

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

22

700126773

SUPPORT

WA

1шт.

23

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

24

700107974

INDICATOR

WA

1шт.

25

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

26

700707201

HOSE

1шт.

27

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

28

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

29

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 14 GAUGE NRMB

4шт.
