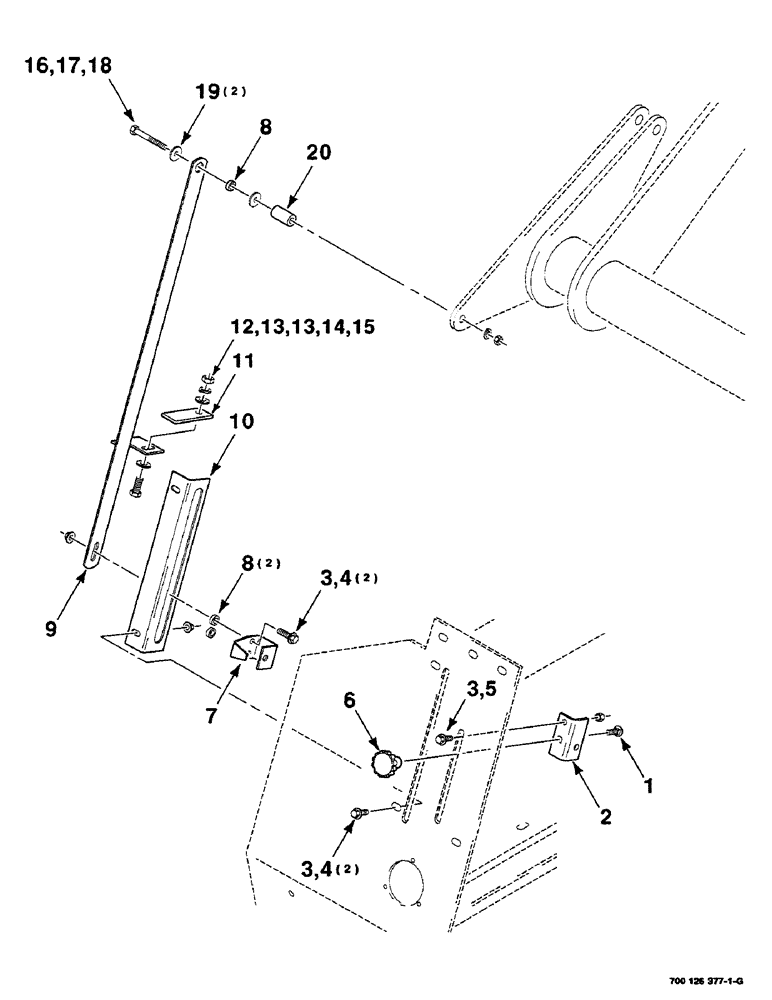

Запчасти Case IH 8455 (6-02) - INDICATOR ASSEMBLY (BALE SIZE) (14) - BALE CHAMBER

1

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

2

700115974

SUPPORT

- switch

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

5

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C

1шт.

6

700707234

BUTTON

KNOB

1шт.

7

700115976

INDICATOR

1шт.

8

700115973

SPACER

3шт.

9

700115988

LINK ASSY.

LINK - indicator

1шт.

10

700115983

ANGLE

1шт.

11

1713155

FLAP

- counter

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

425-105

NUT,5/16"-18, G5

1шт.

19

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

20

6605174

TUBE,19.05 mm OD, 35 mm Length

SPACER

1шт.
