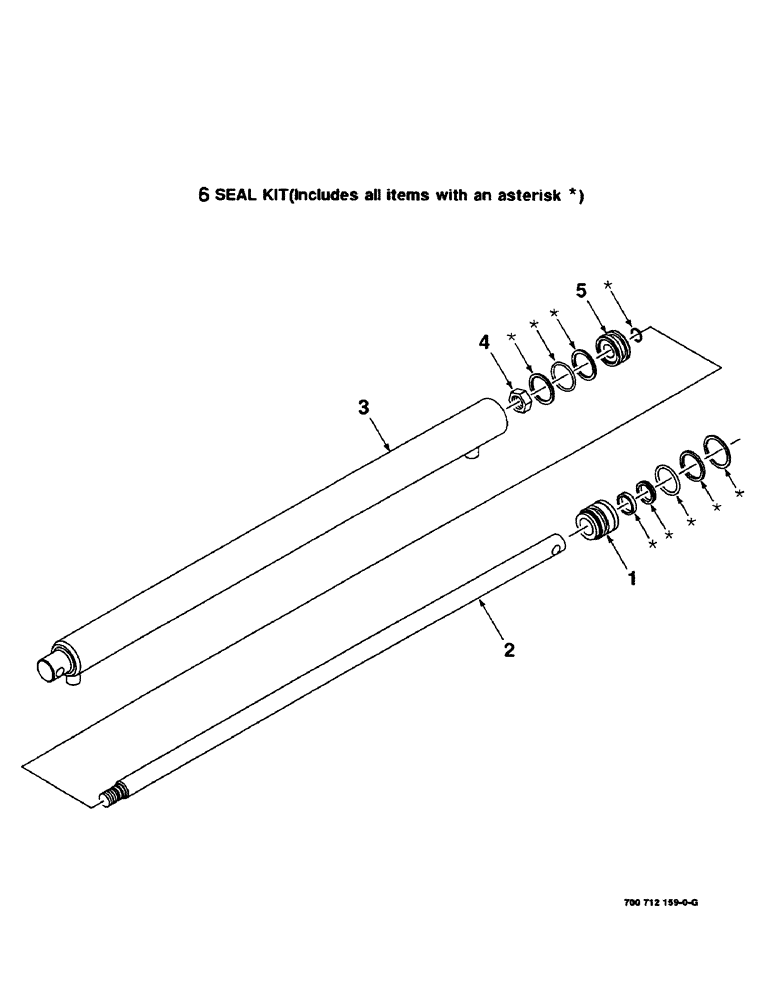

Запчасти Case IH 8455 (8-22) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE), (700712159 HYDRAULIC (07) - HYDRAULICS

700712159

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE (1-3/4 Inch bore x 32 inch stroke)

1шт.

1

700712477

GUIDE

1шт.

2

700712478

ROD

1шт.

3

700712479

BODY

- cylinder

1шт.

4

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

5

700712480

PISTON

1шт.

6

700712176

GASKET KIT

SEAL KIT

1шт.
