(8-18) - HYDRAULIC CYLINDER ASSEMBLY (TENSION AND KICKER), (700712161

Запчасти Case IH 8455 (8-18) - HYDRAULIC CYLINDER ASSEMBLY (TENSION AND KICKER), (700712161 (07) - HYDRAULICS

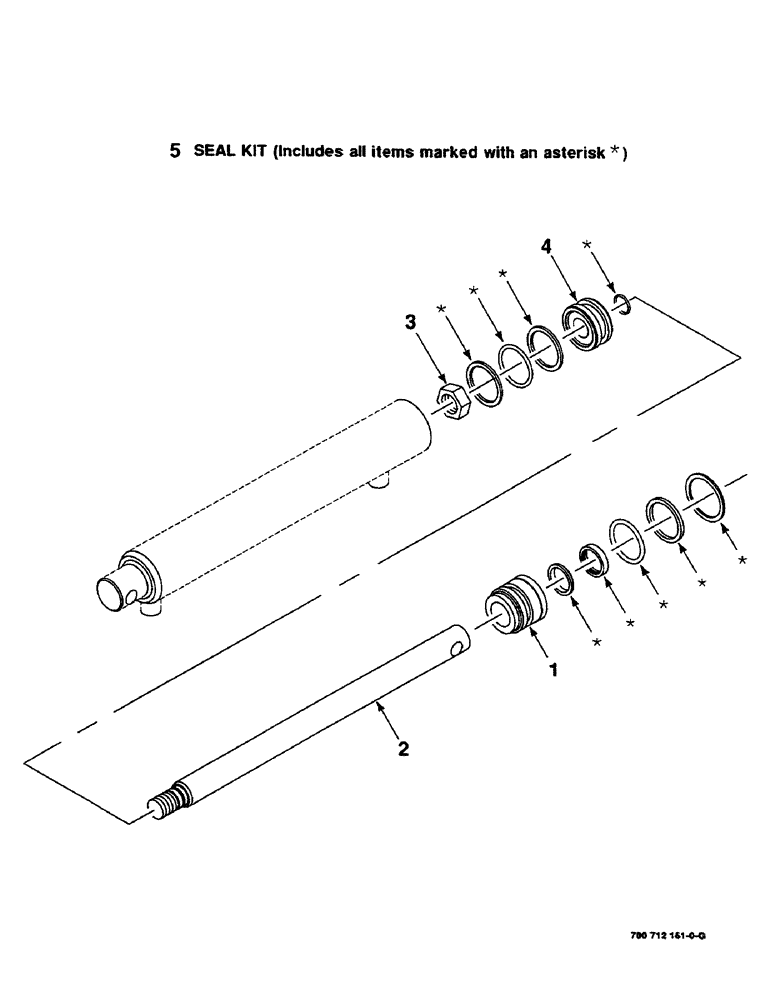

Схема запчастей Case IH 8455 - (8-18) - HYDRAULIC CYLINDER ASSEMBLY (TENSION AND KICKER), (700712161 (07) - HYDRAULICS
3
5
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 12 inch stroke)

1шт.

1

700711112

GUIDE

1шт.

2

700707421

ROD

1шт.

3

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

4

700707419

PISTON

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
