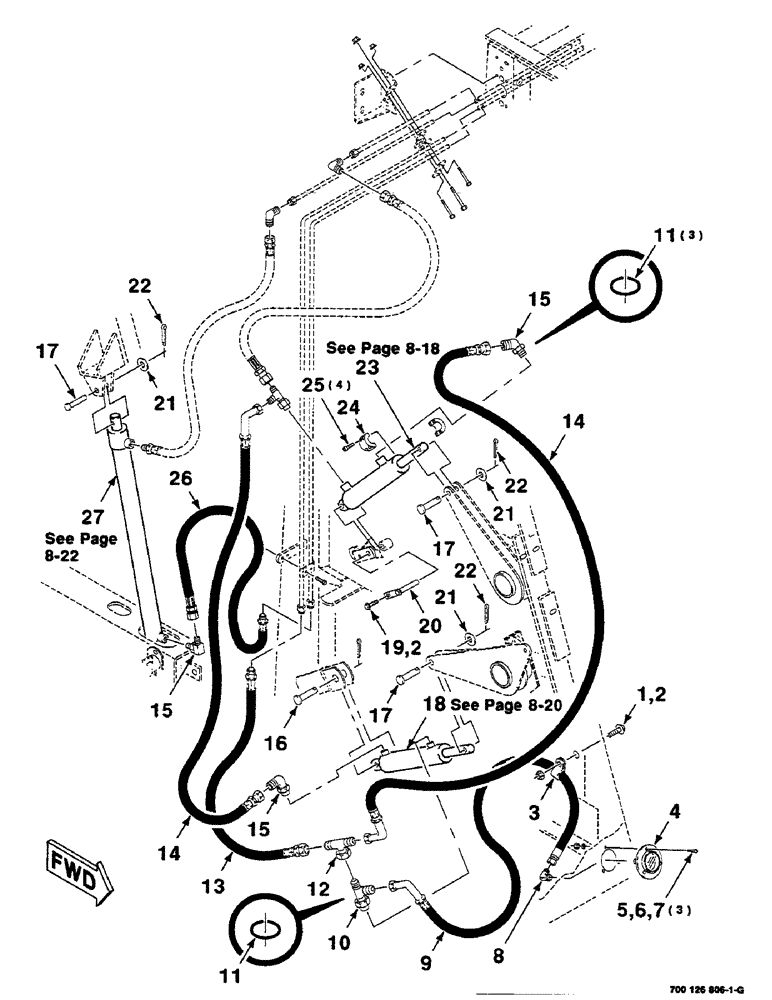

Запчасти Case IH 8455 (8-16) - HYDRAULIC ASSEMBLY (TENSION CONTROL - RIGHT) (07) - HYDRAULICS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 x 3/4 HWHMS

1шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

1шт.

4

700711782

GAUGE

- pressure

1шт.

5

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

#6-32 x 1/2 CRPHMS GR2

3шт.

6

492-11006

LOCK WASHER,#6

Washer, Lock, #6

3шт.

7

225-14106

NUT,#6-32

3шт.

8

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

- 90 degrees

1шт.

9

60233C1

HOSE

- hydraulic

1шт.

10

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 11) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

11

738468

O-RING

4шт.

12

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- swivel branch

1шт.

13

7795388

HOSE

- hydraulic

1шт.

14

700707286

HOSE

- hydraulic

2шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 11)

3шт.

16

62653

CLEVIS PIN

5/8 x 3 CLEVIS PIN

1шт.

17

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2 CLEVIS PIN

3шт.

18

700712160

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.

19

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

20

700118823

PIN

WA

1шт.

21

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

22

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

3шт.

23

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER ASSEMBLY - hydraulic

1шт.

24

700120671

CLAMP

COLLAR

1шт.

25

461-33116

HEX SOC SCREW,5/16"-18 x 1"

5/16-18 x 1 HSHCS SPL

4шт.

26

700708712

HYDRAULIC HOSE,9.65 mm ID x 560.00 mm, SAE 100R2

9.65 mm ID x 560.00 mm, SAE 100R2

1шт.

27

700712159

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.
