(8-10) - HYDRAULIC VALVE ASSEMBLY - BALE TENSIONER, (700708923

Запчасти Case IH 8455 (8-10) - HYDRAULIC VALVE ASSEMBLY - BALE TENSIONER, (700708923 (07) - HYDRAULICS

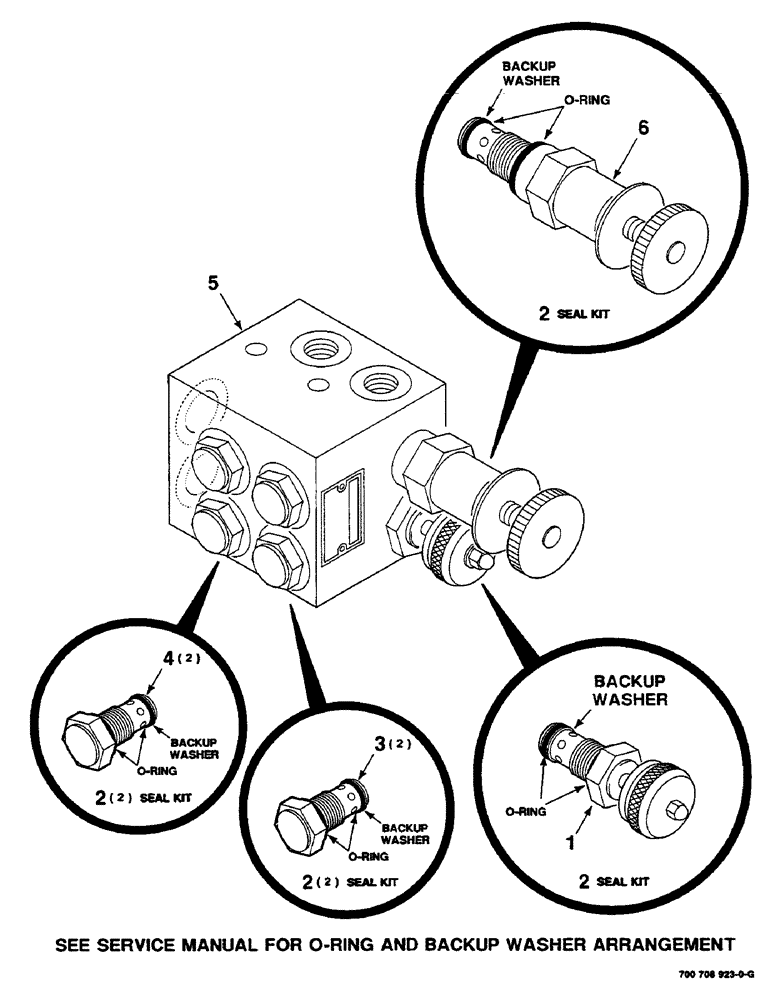

Схема запчастей Case IH 8455 - (8-10) - HYDRAULIC VALVE ASSEMBLY - BALE TENSIONER, (700708923 (07) - HYDRAULICS
4
2
6
2
2
5
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700706158

DRAINCOCK/TAP SUPPLY

VALVE - needle

1шт.

2

700715662

SEAL KIT

O-RING AND SEAL REPAIR KIT

6шт.

3

700709237

VALVE POPPET

CHECK VALVE

2шт.

4

700707831

VALVE

CHECK VALVE

2шт.

5

700708923

VALVE

- bale tensioner, complete

1шт.

6

700707908

VALVE POPPET

VALVE - relief

1шт.
