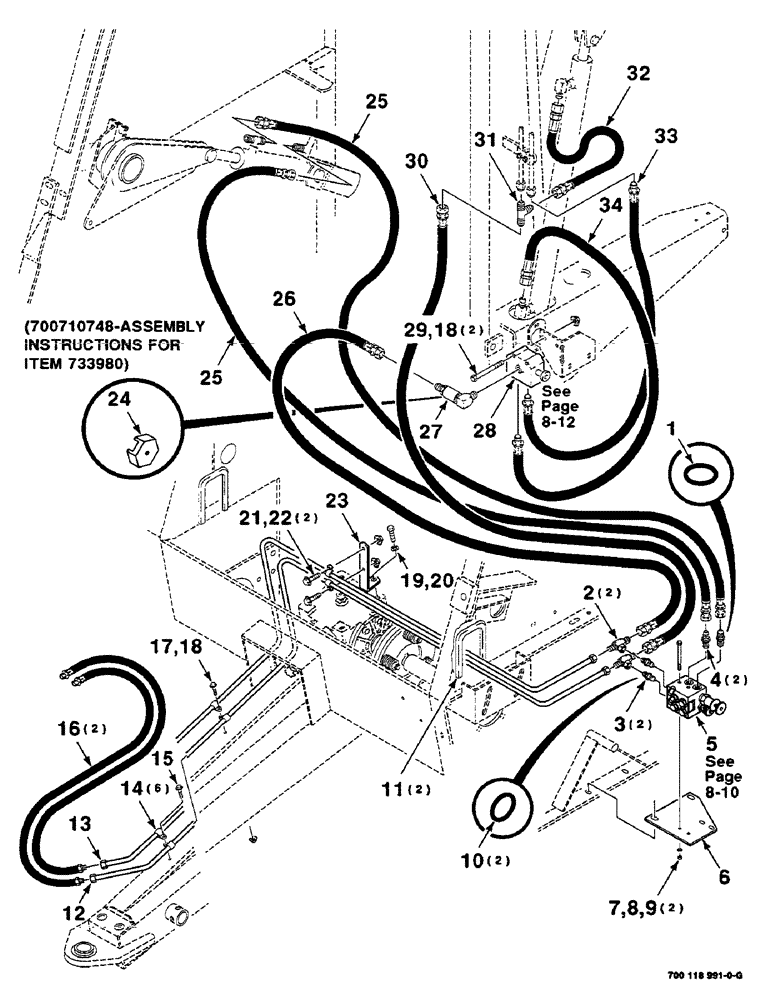

Запчасти Case IH 8455 (8-08) - HYDRAULIC ASSEMBLY - FORWARD (WITHOUT KICKER), SEE PAGE 9-24 (07) - HYDRAULICS

1

738468

O-RING

1шт.

2

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, branch

2шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FLARED CONNECTOR (Incl. item 10)

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FLARED CONNECTOR (Incl. item 1)

2шт.

5

700708923

VALVE

ASSEMBLY - bale tension

1шт.

6

700118983

SUPPORT

- valve

1шт.

7

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 x 3-3/4 C

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

700117735

ADHESIVE STRIP

TRIM

2шт.

12

700708920

TUBE

LINE - hydraulic

1шт.

13

700708919

TUBE

LINE - hydraulic

1шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

6шт.

15

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

16

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

HOSE - hydraulic

2шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

19

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 C

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 x 3/4 HWHMS

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

700118994

STRAP

1шт.

24

733980

ORIFICE

- .0935 inch (Extra)

1шт.

25

1270453C1

HYDRAULIC HOSE

HOSE - hydraulic

2шт.

26

700705745

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

27

700119132

ORIFICE

ASSEMBLY (Includes .125 inch orifice)

1шт.

28

700704264

VALVE

ASSEMBLY - hydraulic, shutoff

1шт.

29

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

30

700708928

HYDRAULIC HOSE,9.65 mm ID x 970.00 mm, SAE 100R2

9.65 mm ID x 970.00 mm, SAE 100R2

1шт.

31

218-594

TEE,3/4"-16, 37 Degree

- flared

1шт.

32

700708926

HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2

9.65 mm ID x 600.00 mm, SAE 100R2

1шт.

33

700708929

HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2

9.65 mm ID x 1040.00 mm, SAE 100R2

1шт.

34

700708927

HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2

9.65 mm ID x 850.00 mm, SAE 100R2

1шт.
