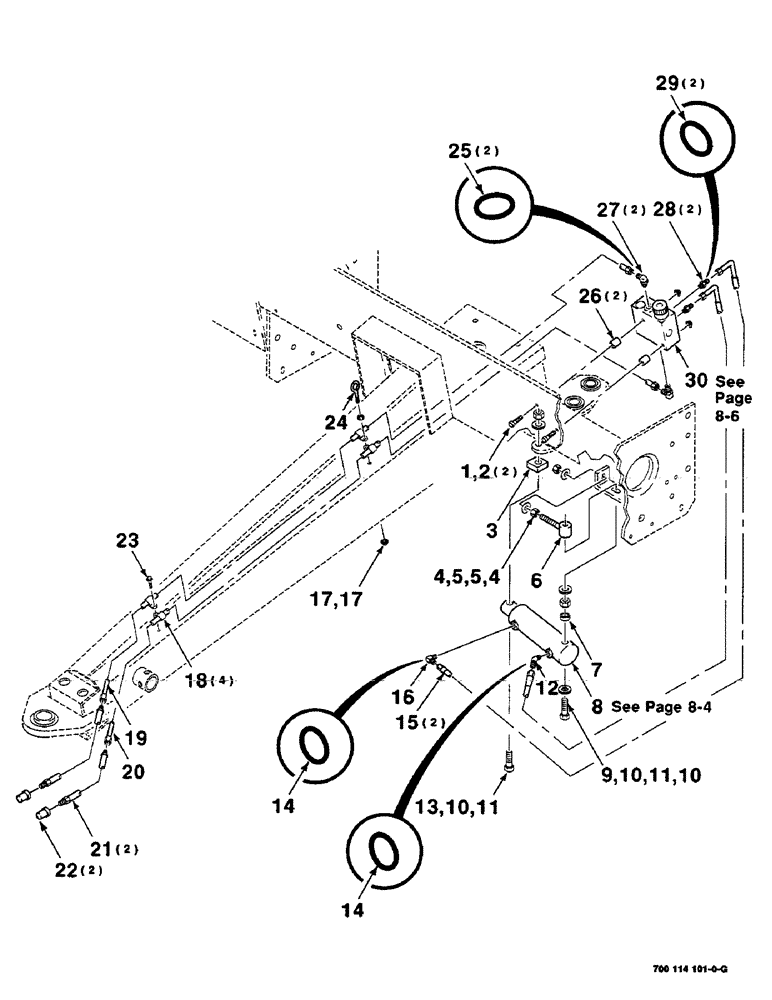

Запчасти Case IH 8455 (8-02) - THREADER HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

Hex, 5/16"-18 x 1/4", G5

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

3

700118879

NUT

- special

1шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

6

700116206

SPECIAL BOLT

DRAWBOLT

1шт.

7

51200241

SPACER

1шт.

8

700711910

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.

9

700711989

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8-11 x 4-1/2 C - special

1шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (Includes item 14)

1шт.

13

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

14

738468

O-RING

2шт.

15

700707272

HOSE

- hydraulic

2шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 14)

1шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

4шт.

19

700707779

LINE

- hydraulic

1шт.

20

700707780

LINE

- hydraulic

1шт.

21

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

HOSE - hydraulic

2шт.

22

746677

CAP

1/2-14 NPT CAP

2шт.

23

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

24

866061

EYEBOLT

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

26

6260244

SPACER

2шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (Includes item 25)

2шт.

28

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, HYD, (Incl. item 29) 7/16"-20, 37º x 7/16"-20, O-Ring

2шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

30

700707258

GOVERNOR

REGULATOR ASSEMBLY - flow control

1шт.
