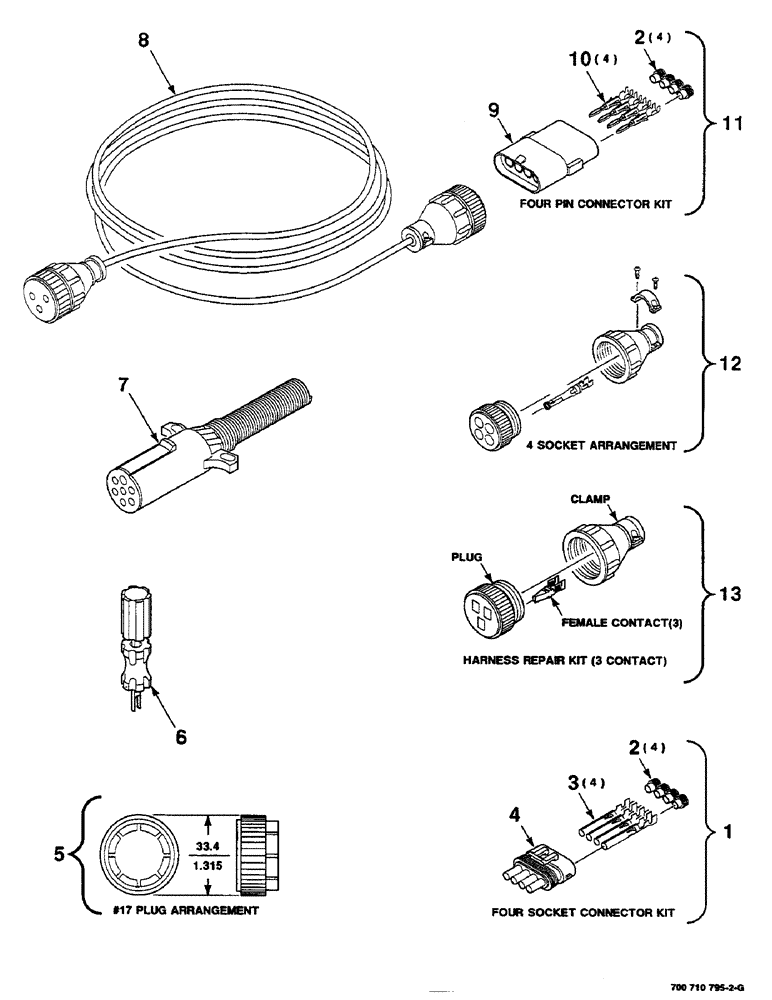

Запчасти Case IH 8455 (4-10) - ELECTRICAL HARNESS SERVICE PARTS (CONTINUED) (06) - ELECTRICAL

1

700707002

REPAIR KIT

FOUR WAY - connector repair kit, female (Includes items 2, 3 and 4)

1шт.

2

700706400

PLUG

SEAL

1шт.

3

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket (18-20 Gauge wire)

1шт.

4

700708963

WIRE CONNECTOR

FOUR WAY - connector, female

1шт.

5

1301191C1

CONNECTION

RING - coupling (#17 Plug arrangement)

1шт.

6

700707014

TERMINAL CONNECTOR

TOOL CONNECTOR REPAIR

1шт.

7

700715341

PLUG

- 7 pin domestic

1шт.

8

700712135

WIRE HARNESS

CABLE ASSEMBLY (Cable for Imported Tractors only)

1шт.

9

700708964

WIRE CONNECTOR

FOUR WAY - connector, male

1шт.

10

700706401

TERMINAL

PIN - terminal (18-20 Gauge wire)

1шт.

11

700709354

REPAIR KIT

FOUR WAY - shroud connector repair kit (Includes items 2, 9 and 10)

1шт.

12

700712132

REPAIR KIT

KIT - repair, receptacle

1шт.

13

1714005

PACKAGE,SERVICE

KIT - harness repair (Female end)

1шт.
