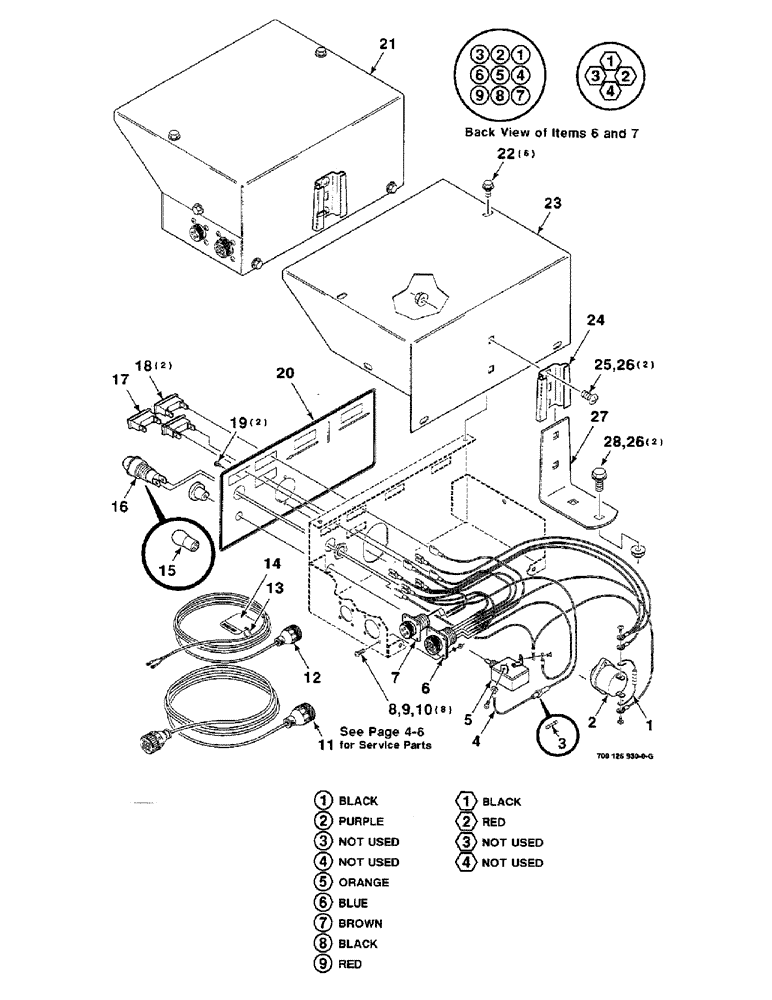

Запчасти Case IH 8455 (4-04) - ELECTRICAL CONTROL BOX AND CABLE ASSEMBLIES (06) - ELECTRICAL

1

700709553

RESISTOR

(Used with all Bale Kickers)

1шт.

2

700703984

INDICATOR

- audio

1шт.

3

702700050

FUSE

(5 AMP)

1шт.

4

700711019

HARNESS

WIRE - electrical (Includes item 3)

1шт.

5

700711048

IGNITION SWITCH

SWITCH

1шт.

6

700707758

CONTAINER

RECEPTACLE - electrical (9 Pin)

1шт.

7

700707757

CONTAINER

RECEPTACLE - electrical (4 Pin)

1шт.

8

700707770

SCREW

#4-40 x 3/8 CRPHMS

8шт.

9

700701036

LOCK WASHER,#4

Washer, Lock, #4

8шт.

10

700701035

HARDWARE

#4-40 H

8шт.

11

700711919

CABLE

- control, electrical

1шт.

12

700707598

WIRE HARNESS

CABLE - control, electrical

1шт.

13

8722431

STRAP

TIE - cable

1шт.

14

700707683

DECAL

- notice, 12 volt

1шт.

15

700710307

BULB

- 12 volt

1шт.

16

700707759

INDICATOR

LIGHT - indicator, amber (Includes item 15)

1шт.

17

700707458

INDICATOR

LIGHT - indicator, green

1шт.

18

700707459

INDICATOR

LIGHT - indicator, amber

2шт.

19

700704212

SELF-TAP SCREW

#4-40 x 3/8 SPHTFTS

2шт.

20

700711920

DECAL

- control box

1шт.

21

700126930

CONTROL

BOX ASSEMBLY COMPLETE

1шт.

22

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

6шт.

23

700116147

COVER

- control box

1шт.

24

041277

SOCKET - mounting

1шт.

25

700701068

SCREW

5/16-18 x 1/2 CRPHMS

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

27

6866081

BRACKET

SPADE - socket

1шт.

28

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.
