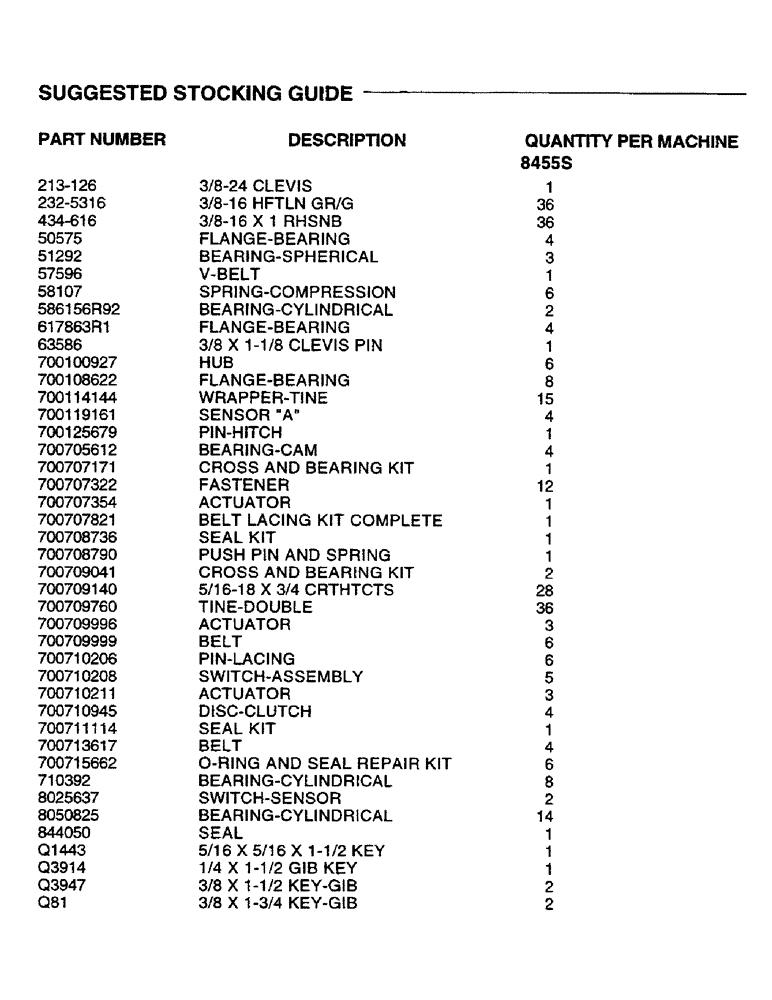

Запчасти Case IH 8455 (0A) - SUGGESTED STOCKING GUIDE (00) - GENERAL

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

36шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

36шт.

663562R1

FLANGE

- bearing

4шт.

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

3шт.

57596

BELT

V-BELT

1шт.

58107

SPRING

- compression

6шт.

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

617863R1

FLANGED BEARING

- bearing

4шт.

063586

CLEVIS PIN

3/8 x 1-1/8 CLEVIS PIN

1шт.

700100927

HUB

6шт.

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

700114144

GUARD

WRAPPER - tine

15шт.

700119161

SWITCH

SENSOR "A"

4шт.

700125679

HITCH PIN

PIN - hitch

1шт.

700705612

CAM FOLLOWER

BEARING - cam

4шт.

700707171

CROSS

AND BEARING KIT

1шт.

700707322

LATCH ASSY.

FASTENER

12шт.

700707354

CONNECTION,ELECTRIC

ACTUATOR

1шт.

700707821

BELT

LACING KIT COMPLETE

1шт.

700708736

SEAL KIT

KIT

1шт.

700708790

KIT

PUSH PIN AND SPRING

1шт.

700709041

CROSS

AND BEARING KIT

2шт.

700709140

SELF-TAP SCREW,Pan HD, 5/16" - 18 x 3/4"

5/16-18 x 3/4 CRTHTCTS

28шт.

700709760

TINE

TINE - double

36шт.

700709996

SWITCH

ACTUATOR

3шт.

700709999

BELT,177.00 mm W x 14287.5 mm L

177.00 mm W x 14287.5 mm

6шт.

700710206

PIN,1.73mm OD x 180mm L

- lacing

6шт.

700710208

ROTARY SWITCH

SWITCH - assembly

5шт.

700710211

ACTUATOR

3шт.

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - clutch

4шт.

700711114

SEAL KIT

SEAL KIT

1шт.

700713617

BELT,177.00 mm W x 14287.50 mm L

4шт.

700715662

SEAL KIT

O-RING AND SEAL REPAIR KIT

6шт.

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

8шт.

8025637

SWITCH

- sensor

2шт.

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

14шт.

844050

SEAL

1шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 5/16 x 1-1/2 KEY

1шт.

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 GIB KEY

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2 KEY - gib

2шт.

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 KEY - gib

2шт.
