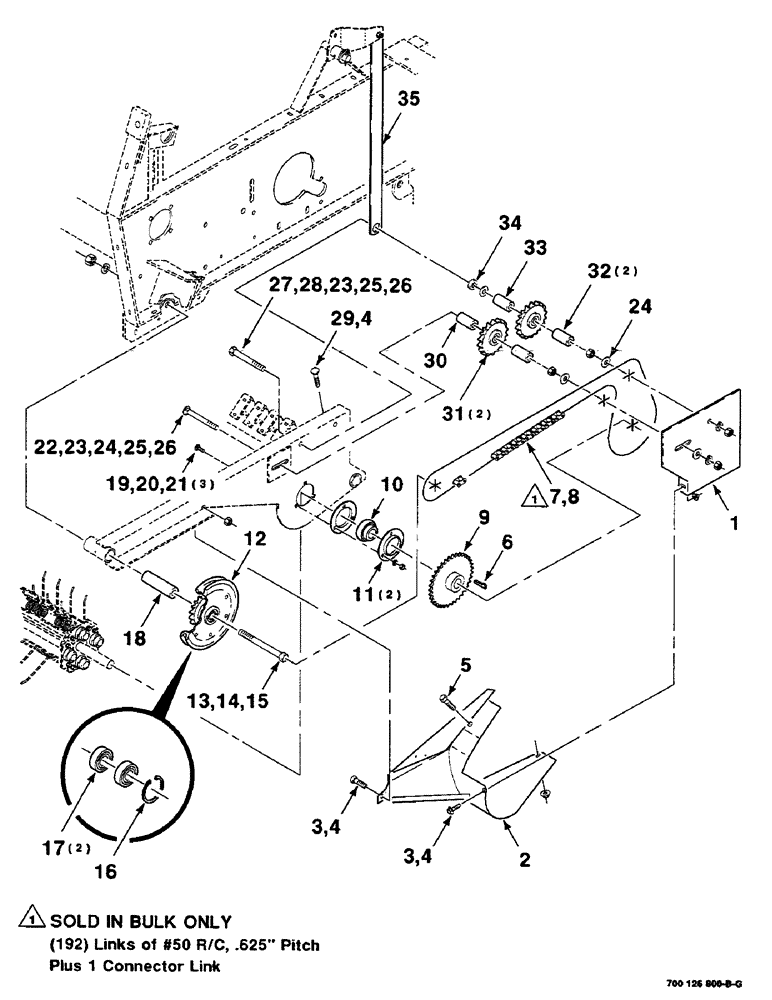

Запчасти Case IH 8455 (3-08) - PICKUP DRIVE ASSEMBLY (LEFT) Pickup

1

700114164

SHIELD

- pickup, drive

1шт.

2

700114133

DEFLECTOR

WA - left

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

6

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 GIB KEY

1шт.

7

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 Foot bulk)

1шт.

8

47530

LINK, CONNECTING

LINK - connector, #50

1шт.

9

700109639

SPROCKET ASSY.

SPROCKET 50B35 TOOTH

1шт.

10

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

1шт.

11

617863R1

FLANGED BEARING

- bearing

2шт.

12

700114166

PULLEY

SHEAVE ASSEMBLY (Includes items 16 and 17)

1шт.

13

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 x 8 C

1шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

15

425-1012

NUT,3/4"-10, G5

1шт.

16

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

17

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

2шт.

18

700114171

TUBE,38.1 mm OD, 135.5 mm Length

- pickup, pivot

1шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

3шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

425-106

NUT,3/8"-16, Cl 5

3шт.

22

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 RHSNB

1шт.

23

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HEX JAM NUT

2шт.

24

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

425-1010

NUT,5/8"-11, G5

2шт.

27

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 x 5-1/2 C

1шт.

28

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

29

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

30

6610844

SPACER

1шт.

31

211623C91

SPROCKET

- idler, 17 tooth

2шт.

32

700114929

TUBE,31.75 mm OD, 41 mm Length

SPACER

2шт.

33

6156871

SPACER

1шт.

34

378521

SPACER

1шт.

35

700114170

STRAP

1шт.
