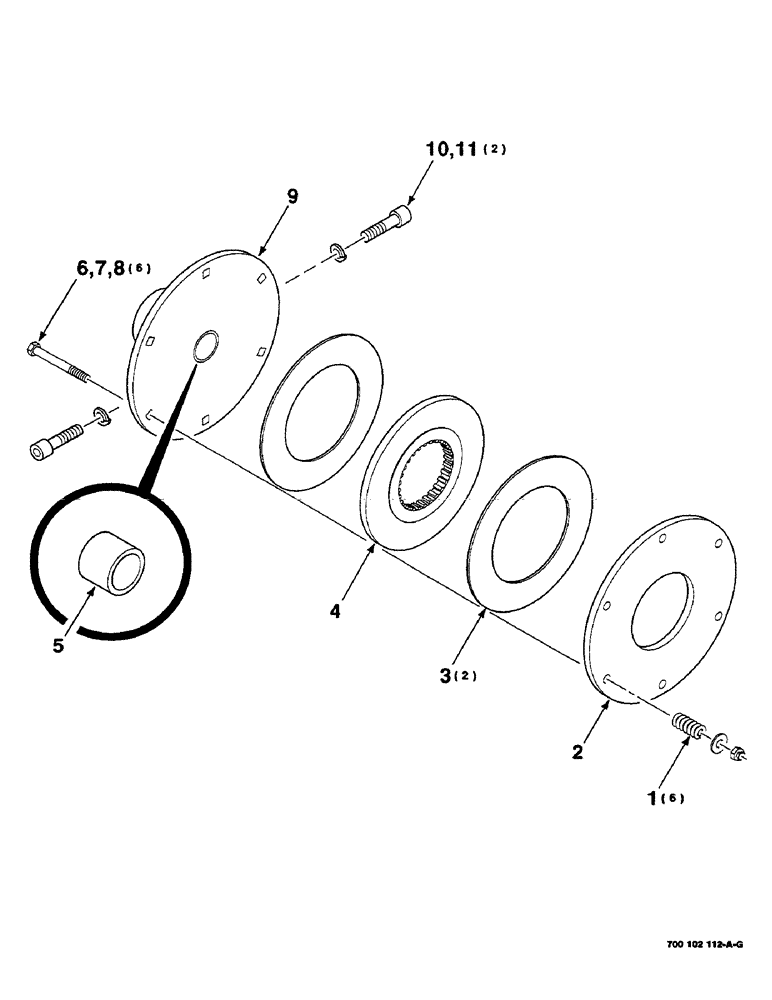

Запчасти Case IH 8455 (2-12) - SLIP CLUTCH ASSEMBLY, (S.N. CFH0078656 AND LATER) Driveline

1

58107

SPRING

- compression

6шт.

2

6248173

LARGE PLATE

PLATE - pressure

1шт.

3

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - clutch

2шт.

4

700129405

DISC

- clutch

1шт.

5

805580

BRONZE BUSHING

BUSHING - bronze

1шт.

6

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

7

495-21044

WASHER,3/8"

6шт.

8

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

6шт.

9

700125029

DISC

WA (Includes item 5)

1шт.

10

71142

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HSHCS SPL

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
