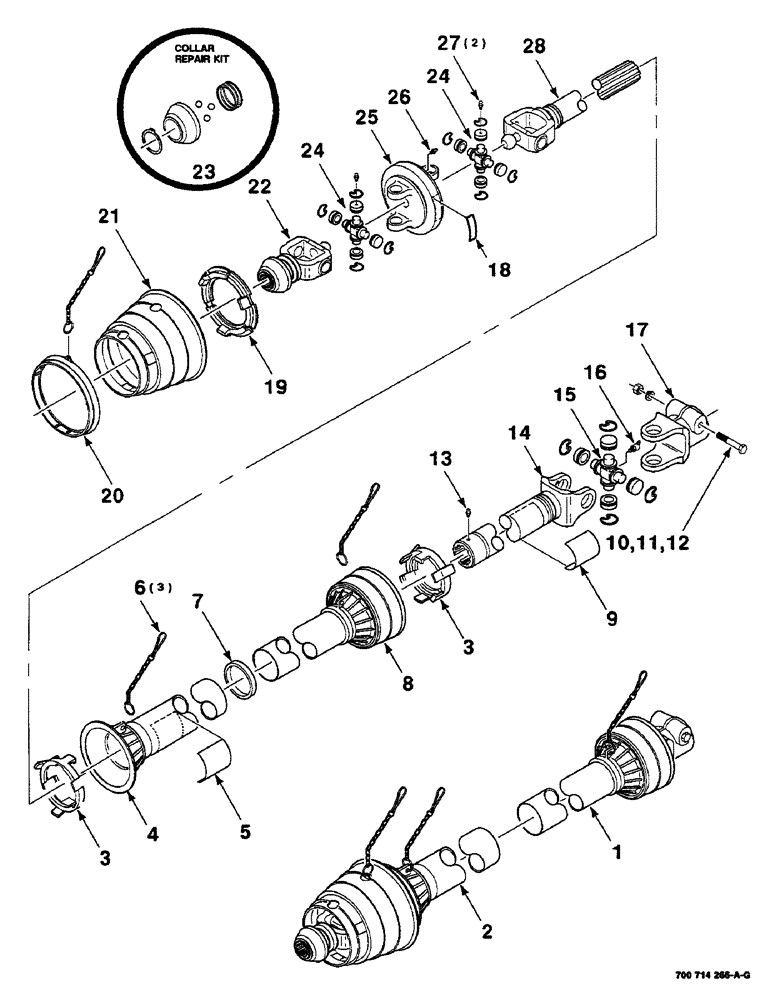

Запчасти Case IH 8455 (2-04) - IMPLEMENT DRIVELINE ASSEMBLY (NEAPCO), (S.N. CFH0078788 AND Driveline

1

700714302

SHAFT

IMPLEMENT HALF ASSEMBLY

1шт.

2

700713789

JOINT

TRACTOR HALF ASSEMBLY (540 RPM)

1шт.

700713790

SHAFT

TRACTOR HALF ASSEMBLY (1000 RPM)

1шт.

3

700713781

GUARD

BEARING - shield, inner

2шт.

4

700714728

GUARD

SHIELD ASSEMBLY - outer

1шт.

5

1326528C1

DECAL

- danger

1шт.

6

700714256

CHAIN (AG)

CHAIN - safety

3шт.

7

700709718

NYLON BEARING

BEARING - nylon

1шт.

8

700714294

GUARD

SHIELD ASSEMBLY - inner, implement

1шт.

9

80672C1

DECAL

- danger

1шт.

10

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 C

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

13

700713833

LUBE NIPPLE,3/16" x 25/64", drivetech

NIPPLE, LUBE, 3/16" x 25/64", drivetech

1шт.

14

700714286

YOKE

- tube and sleeve

1шт.

15

845198

KIT

CROSS AND BEARING KIT

1шт.

16

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-28 x 65 DEGREE ZERK

1шт.

17

8802910

CLAMP

YOKE - clamp, implement

1шт.

18

700714285

DECAL

CV DANGER LABLE

1шт.

19

700713775

COLLAR

BEARING - CV

1шт.

20

700713774

RING, SNAP

RING - outer, CV

1шт.

21

700713778

CONE

- shield, CV

1шт.

22

700713772

COLLAR

YOKE ASSEMBLY - tractor (1-3/8 x 6 Spline - 540 RPM)

1шт.

700713788

YOKE

ASSEMBLY - tractor (1-3/8 x 21 Spline - 1000 RPM)

1шт.

700714128

BODY

YOKE ASSEMBLY - tractor (1-3/4 x 20 Spline - 1000 RPM)

1шт.

23

700714200

KIT

SLIDE COLLAR REPAIR KIT (1-3/8 Spline)

1шт.

700714002

PACKAGE

SLIDE COLLAR REPAIR KIT (1-3/4 Spline)

1шт.

24

700713773

KIT

CROSS AND BEARING KIT

2шт.

25

700713777

HOUSING

ASSEMBLY - CV

1шт.

26

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 DEGREE ZERK

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

28

700713786

YOKE

AND SHAFT ASSEMBLY

1шт.
