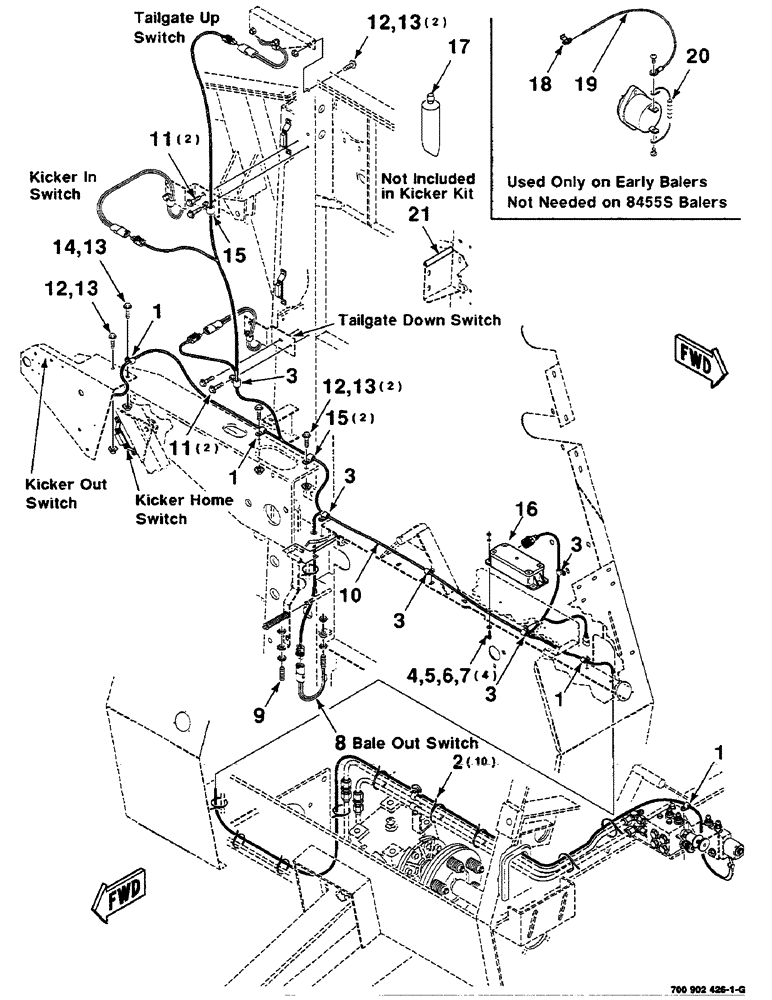

Запчасти Case IH 8455 (9-28) - BALE KICKER KIT-ELECTRICAL ASSEMBLY Decals & Attachments

1

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

5шт.

4

700707203

CAPTIVE WASHER SCREW

#12-24 x 3/4 HWHMS

4шт.

5

27616R1

WASHER,.281" x 5/8" x .075", HDN

#12 PLAIN WASHER

4шт.

6

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

4шт.

7

121743

CHAIN,#12 - 24

#12-24 H GR2

4шт.

8

700119161

SWITCH

SENSOR "A"

1шт.

9

700707354

CONNECTION,ELECTRIC

ACTUATOR

1шт.

10

700709346

HARNESS

- wire

1шт.

11

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/8-18 x 3/4 HWHTCTS

4шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

14

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

1шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

3шт.

16

700709344

TERMINAL BOX

BOX ASSEMBLY - electronic control

1шт.

17

345-92

GLUE

DIELECTRIC COMPOUND

1шт.

18

700709784

CONNECTOR, ELEC

SPLICELOCK

1шт.

19

700709785

ELECTRICAL WIRE

WIRE - electrical

1шт.

20

700709553

RESISTOR

1шт.

21

700120657

ORNAMENTAL STRIP

GROMMET (Not included in Kicker kit)

1шт.
