(9-26) - HYDRAULIC VALVE ASSEMBLY-BALE KICKER, (700708907 HYDRAULIC

Запчасти Case IH 8455 (9-26) - HYDRAULIC VALVE ASSEMBLY-BALE KICKER, (700708907 HYDRAULIC Decals & Attachments

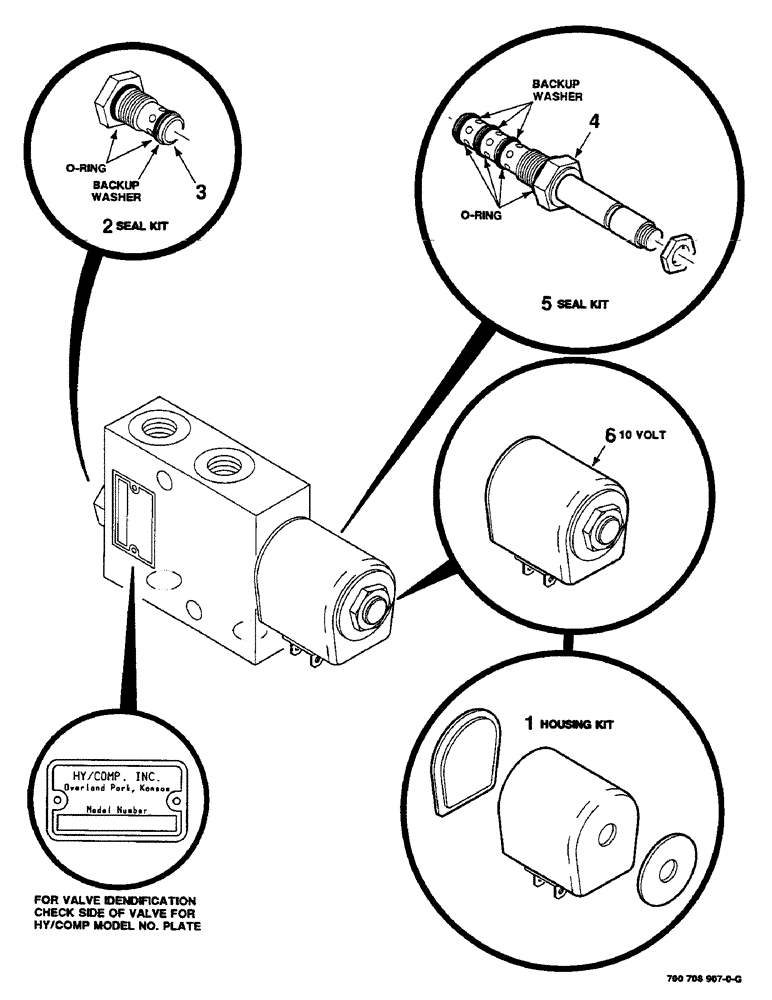

Схема запчастей Case IH 8455 - (9-26) - HYDRAULIC VALVE ASSEMBLY-BALE KICKER, (700708907 HYDRAULIC Decals & Attachments
3
1
2
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700708907

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

1шт.

1

700707826

REPAIR KIT

KIT - coil housing

1шт.

2

700715662

SEAL KIT

O-RING AND SEAL REPAIR KIT

1шт.

3

700707833

VALVE, CHECK

VALVE - check, poppet (15 PSI spring)

1шт.

4

700706610

CARTRIDGE

SOLENOID (2-Position, 4-Way)

1шт.

5

700707215

SEAL KIT

O-RING AND SEAL REPAIR KIT

1шт.

6

700707825

COIL

- with spade terminal (10 V DC)

1шт.
