(9-24) - BALE KICKER KIT-HYDRAULIC ASSEMBLY

Запчасти Case IH 8455 (9-24) - BALE KICKER KIT-HYDRAULIC ASSEMBLY Decals & Attachments

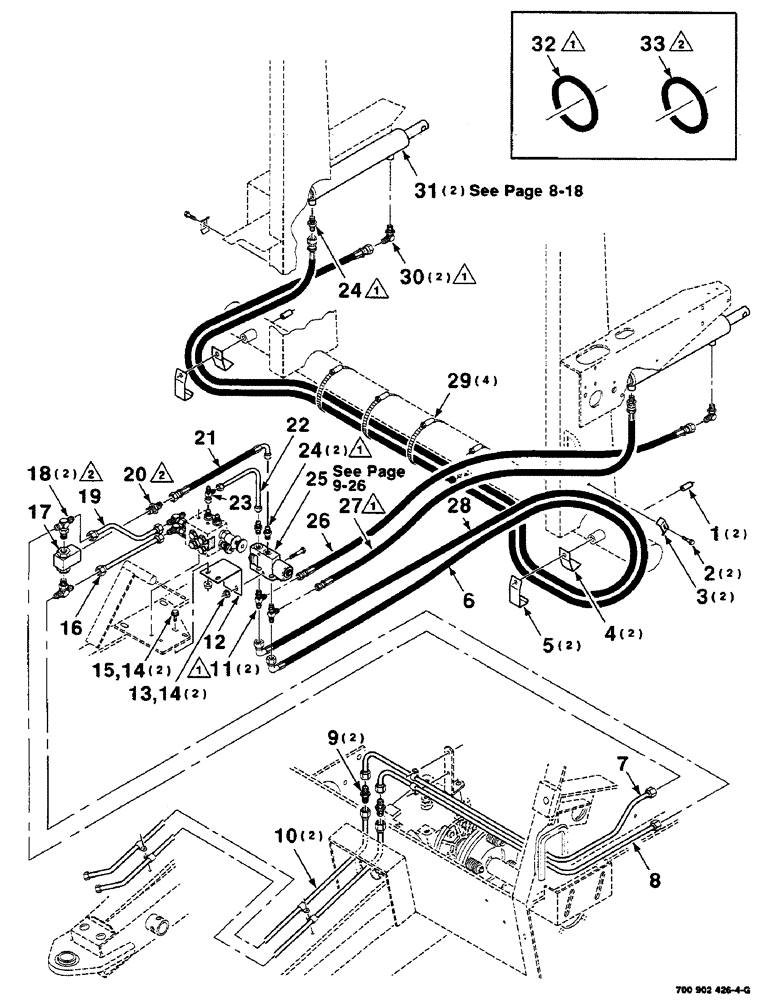

Схема запчастей Case IH 8455 - (9-24) - BALE KICKER KIT-HYDRAULIC ASSEMBLY Decals & Attachments
25
16
8
26
4
20
24
10
23
31
2
12
29
7
28
17
33
30
15
27
21
3
14
22
32
18
6
5
1
14
9
24
11
13
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

451542

SPACER

2шт.

2

73528

SELF-TAP SCREW

3/8-16 x 1-1/2 HWHTCTS

2шт.

3

6246995

CLAMP

- line

2шт.

4

700118981

CLAMP

- hose

2шт.

5

700118982

CLAMP

- hose

2шт.

6

700708910

HOSE

- hydraulic

1шт.

7

700709350

LINE

- hydraulic

1шт.

8

700709349

LINE

- hydraulic

1шт.

9

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

10

700709348

LINE

- hydraulic

2шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 32) 9/16"-18, 37º x 9/16"-18, O-Ring Run

2шт.

12

700118985

MOUNTING PARTS

MOUNTING - valve

1шт.

13

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

16

700709341

LINE

- hydraulic

1шт.

17

700709343

VALVE

ASSEMBLY - hydraulic, shuttle

1шт.

18

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- straight thread branch (Includes item 33)

2шт.

19

700709342

LINE

- hydraulic

1шт.

20

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - short straight thread (Includes item 33)

1шт.

21

700709382

HOSE

- hydraulic

1шт.

22

700708906

LINE

- hydraulic

1шт.

23

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (Incl. item 32)

3шт.

25

700708907

VALVE

ASSEMBLY - hydraulic

1шт.

26

700708912

HYDRAULIC HOSE,9.65 mm ID x 950.00 mm, SAE 100R2

9.65 mm ID x 950.00 mm, SAE 100R2

1шт.

27

700708911

HYDRAULIC HOSE,9.65 mm ID x 721.00 mm, SAE 100R2

(Includes item 32) 9.65 mm ID x 721.00 mm, SAE 100R2

1шт.

28

700708908

HOSE

- hydraulic

1шт.

29

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, #64, 3.56/4.50 Type F Worm

4шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 32)

2шт.

31

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER ASSEMBLY - hydraulic

2шт.

32

738468

O-RING

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
