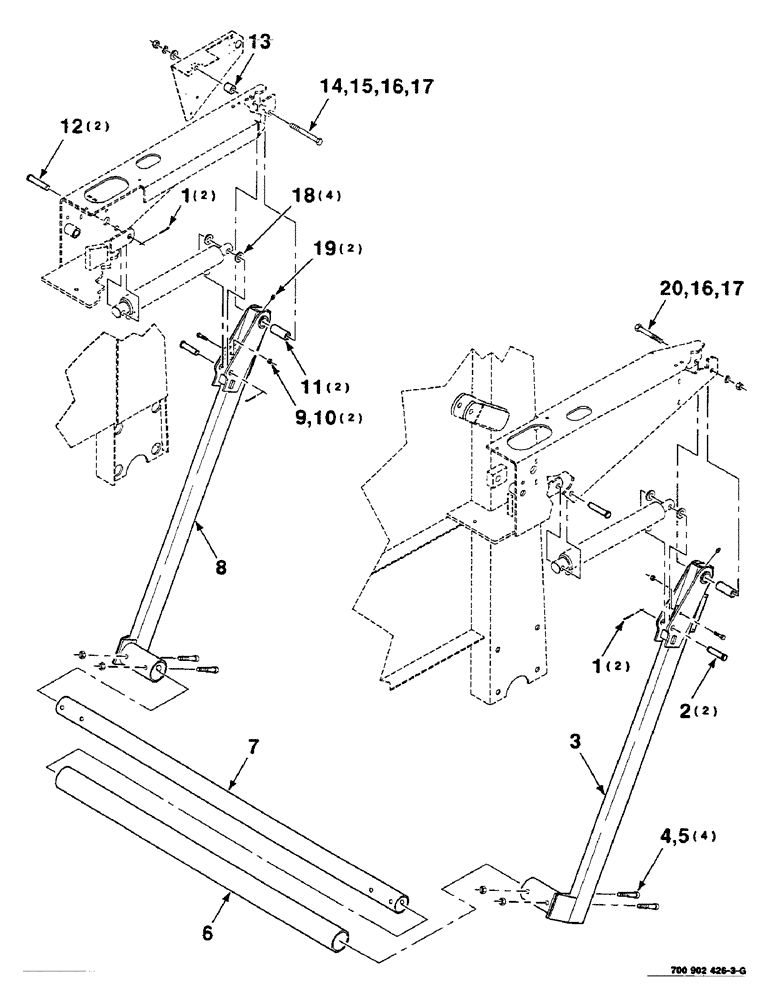

Запчасти Case IH 8455 (9-22) - BALE KICKER KIT, (HK50563 BALE KICKER KIT ASSEMBLY Decals & Attachments

HK50563

BALE CHAMBER

BALE KICKER KIT COMPLETE (Includes pages 9-22 thru 9-30)

1шт.

1

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

2

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2 CLEVIS PIN

2шт.

3

700118714

STRUT

ASSEMBLY - left (Includes items 9 and 10)

1шт.

4

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 x 3-1/4 HSHCS SPL

4шт.

5

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

4шт.

6

700119843

ROLLER

- ejector

1шт.

7

700115818

TUBE,60.32 mm OD, 1484 mm Length

- ejector

1шт.

8

700122477

STRUT

ASSEMBLY RIGHT (Includes items 9 and 10)

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 x 1-1/4 C

2шт.

10

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

11

700115943

TUBE,25.4 mm OD, 61 mm Length

2шт.

12

763227

BRACKET

5/8 x 3 CLEVIS PIN

2шт.

13

6181002

SPACER

1шт.

14

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 C

1шт.

15

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

20

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.
