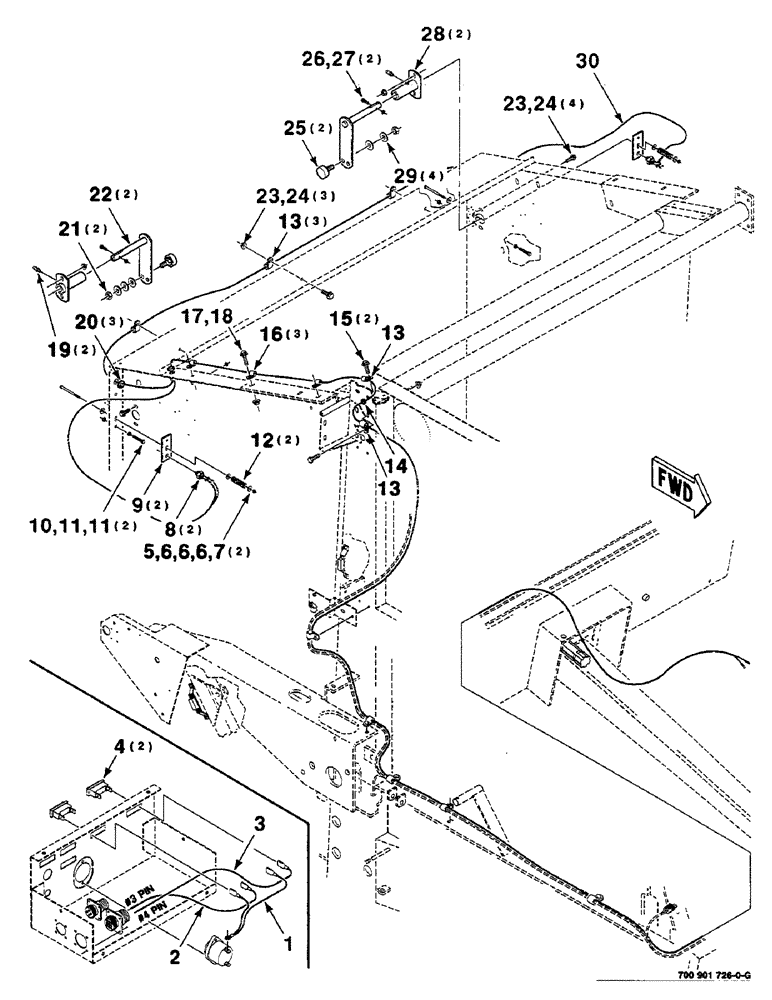

Запчасти Case IH 8455 (9-20) - BALE SHAPE MONITOR KIT, (HK50452 BALE SHAPE MONITOR KIT Decals & Attachments

HK50452

BALE SHAPE MONITOR KIT COMPLETE

1шт.

1

700707750

ASSEMBLY

WIRE ASSEMBLY - electrical, double

1шт.

2

700707756

ELECTRICAL WIRE

WIRE - electrical (#3 Pin)

1шт.

3

700707755

ELECTRICAL WIRE

WIRE - electrical (#4 Pin)

1шт.

4

700707459

INDICATOR

LAMP ASSEMBLY - amber

2шт.

5

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

7

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

8

8025637

SWITCH

- sensor

2шт.

9

700116155

PLATE

- switch

2шт.

10

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

7058266

SPRING

2шт.

13

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

5шт.

14

700708340

GROMMET

1шт.

15

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 x 3/4 HWHTCTS

2шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

3шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 x 3/4 HWHMS

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

20

7827983

GROMMET

3шт.

21

702700045

LOCK NUT

- spiralock

2шт.

22

700116156

CRANK

WA

2шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

7шт.

25

700705612

CAM FOLLOWER

BEARING - cam

2шт.

26

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

2шт.

27

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

2шт.

28

700116140

SUPPORT

WA

2шт.

29

495-11053

WASHER,1/2", SAE

4шт.

30

700707361

HARNESS

- wire

1шт.
