(9-18) - FIRE EXTINGUISHER KIT, HK50556 FIRE EXTINGUISHER KIT

Запчасти Case IH 8455 (9-18) - FIRE EXTINGUISHER KIT, HK50556 FIRE EXTINGUISHER KIT Decals & Attachments

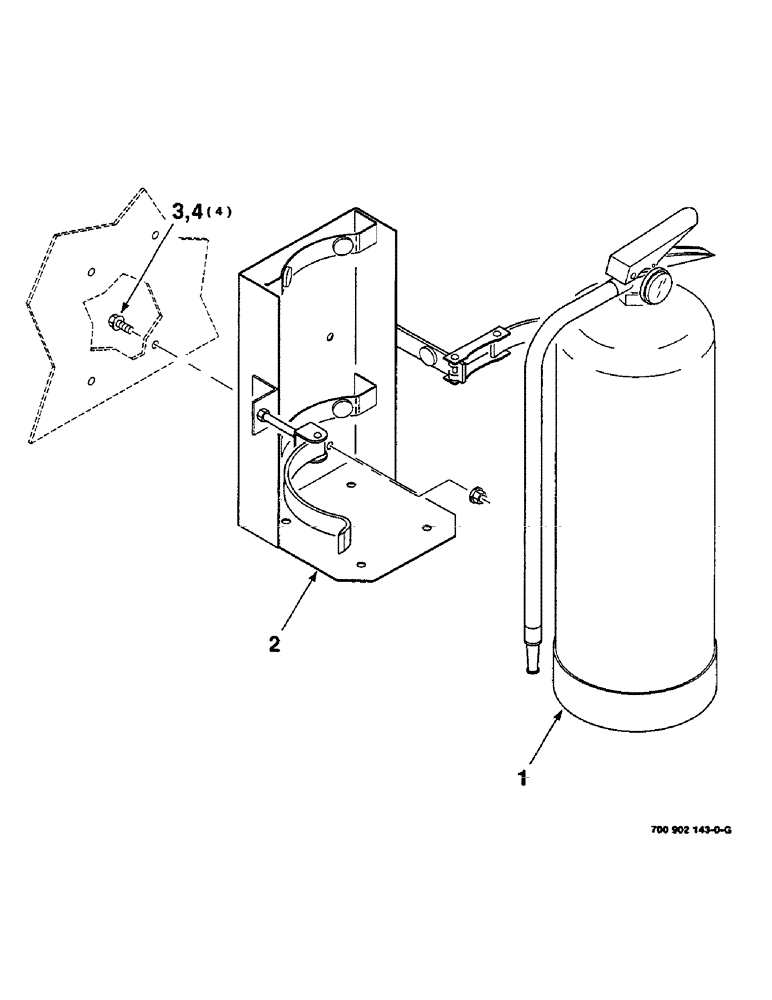

Схема запчастей Case IH 8455 - (9-18) - FIRE EXTINGUISHER KIT, HK50556 FIRE EXTINGUISHER KIT Decals & Attachments
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK50556

FIRE EXTINGUISHER KIT COMPLETE

1шт.

1

700709200

FIRE EXTINGUISHER

EXTINGUISHER - fire

1шт.

2

700709201

BRACKET

- mounting

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.
