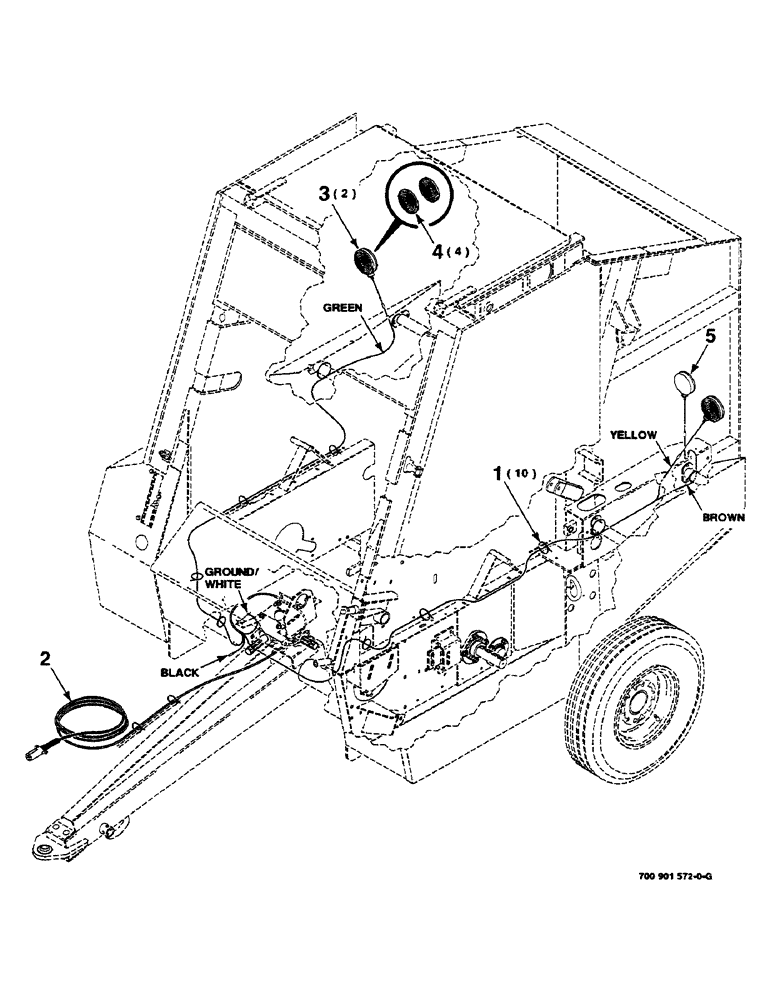

Запчасти Case IH 8455 (9-16) - LIGHT KIT (WARNING), (HK50456 WARNING LIGHT KIT COMPLETE-TO Decals & Attachments

HK50456

WARNING LIGHT KIT COMPLETE

1шт.

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

2

700707926

HARNESS

- wire

1шт.

3

700708036

SIDE LAMP ASSY

LIGHT - flasher

2шт.

4

700711749

LENS

- light, flasher

4шт.

5

700706634

STOP LIGHT

LIGHT - stop

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

7шт.

7

700117560

ANGLE

- mounting, light

3шт.

8

700705121

WIRE

- electric

1шт.

9

700708074

ELECTRICAL WIRE

WIRE - electric

1шт.

10

700708075

ELECTRICAL WIRE

WIRE - electric

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line 3/8", Insul, 5/16" Bolt

6шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 x 1/2 HWHTCTS

7шт.

14

722496

CLIP

- line

4шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

17

492-11038

LOCK WASHER,3/8"

6шт.

18

425-106

NUT,3/8"-16, Cl 5

6шт.
