(9-12) - HYDRAULIC CYLINDER ASSEMBLY (PICKUP), (700712122 HYDRAULIC

Запчасти Case IH 8455 (9-12) - HYDRAULIC CYLINDER ASSEMBLY (PICKUP), (700712122 HYDRAULIC Decals & Attachments

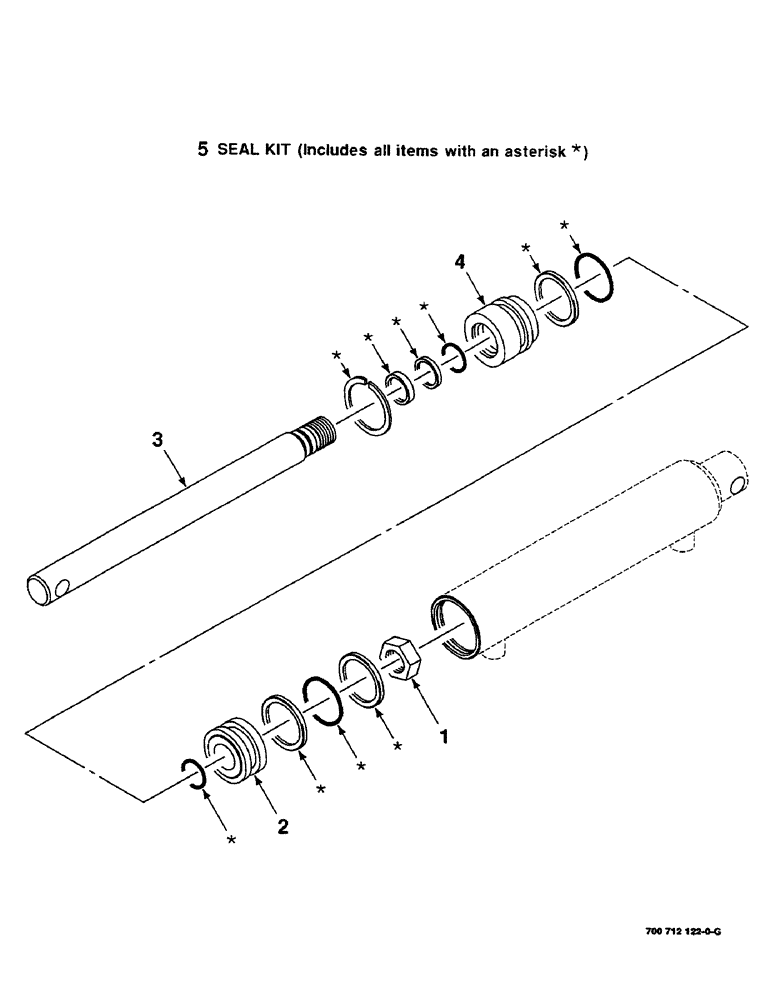

Схема запчастей Case IH 8455 - (9-12) - HYDRAULIC CYLINDER ASSEMBLY (PICKUP), (700712122 HYDRAULIC Decals & Attachments
5
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712122

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 8 inch stroke)

1шт.

1

700707418

JAM NUT

7/8-14 JAM NUT

1шт.

2

700707419

PISTON

1шт.

3

700709465

ROD

- piston

1шт.

4

700711112

GUIDE

- rod

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
