(9-06) - SHORT CROP KIT, (HK50459 SHORT CROP KIT COMPLETE-TO BE

Запчасти Case IH 8455 (9-06) - SHORT CROP KIT, (HK50459 SHORT CROP KIT COMPLETE-TO BE Decals & Attachments

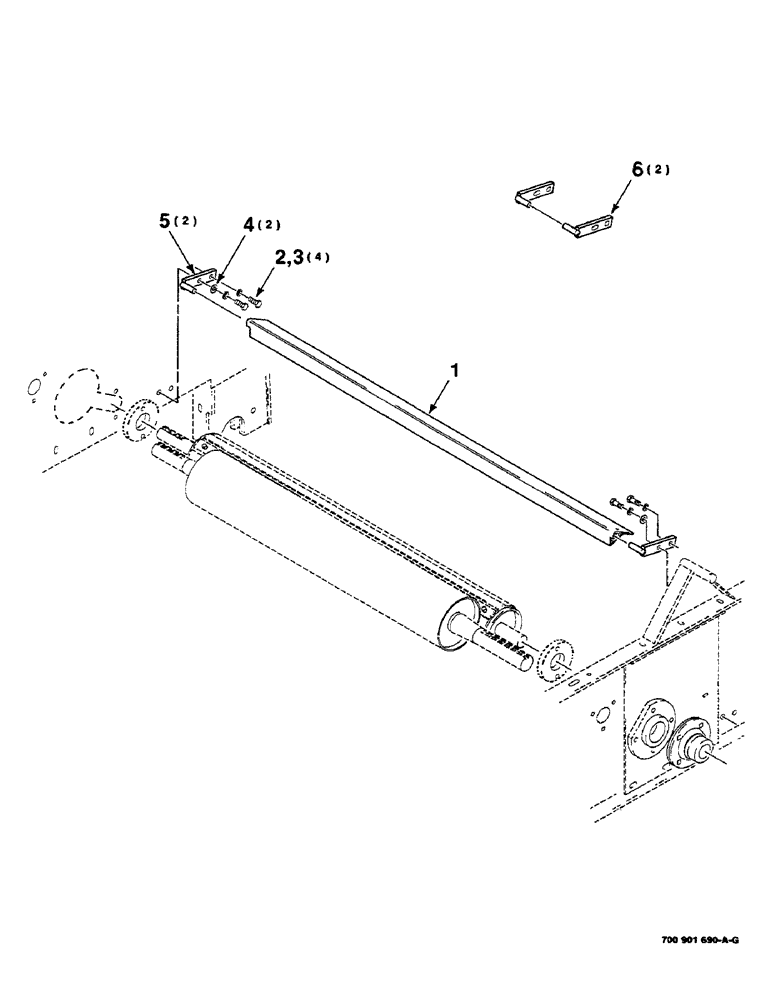

Схема запчастей Case IH 8455 - (9-06) - SHORT CROP KIT, (HK50459 SHORT CROP KIT COMPLETE-TO BE Decals & Attachments
6
1
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK50459

ATTACHMENT

SHORT CROP KIT COMPLETE

1шт.

1

700117751

FILLER

WA

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

5

700125010

STRAP

WA

2шт.

6

1668243

STRAP

WA

2шт.
