Запчасти Case IH 8455 (9-02) - DECALS AND LOCATION DIAGRAM (FRONT) Decals & Attachments

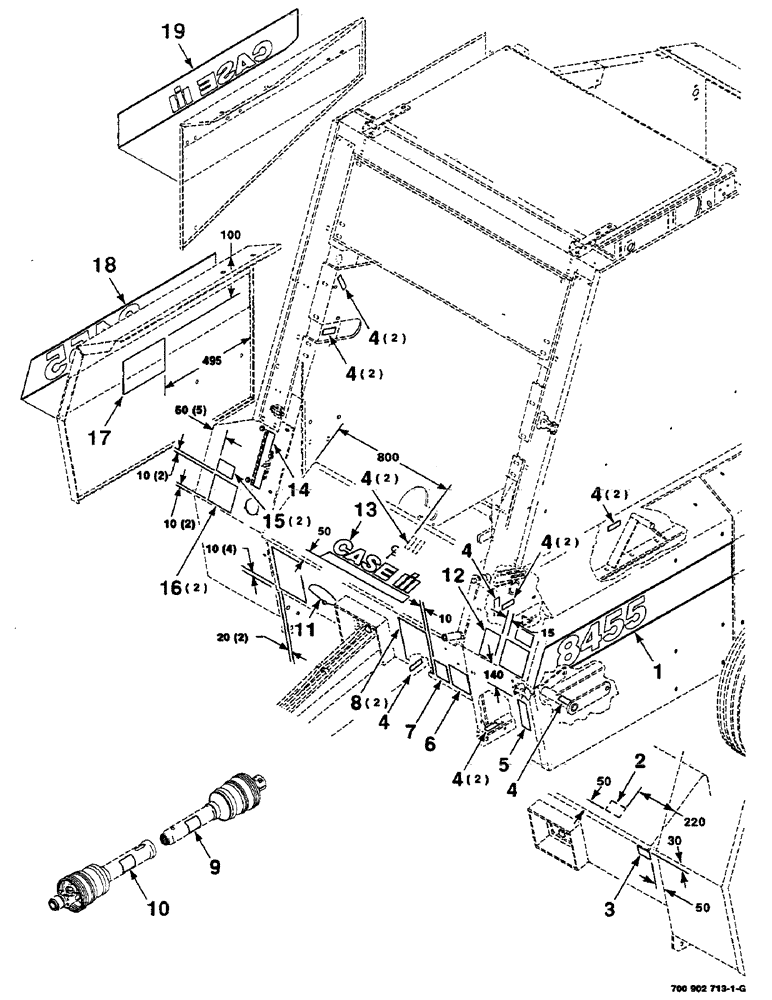

Схема запчастей Case IH 8455 - (9-02) - DECALS AND LOCATION DIAGRAM (FRONT) Decals & Attachments
14
4
10
5
3
13
11
4
6
4
7
12
4
4
4
2
18
4
19
1
4
9
4
15
17
16
8

Артикул

Название

Примечание

Количество

1

700710019

DECAL

- combo, left, front (S.N. CFH0078501 thru CFH0078867)

1шт.

700714312

DECAL

- combo, left, front (S.N. CFH0078868 and later)

1шт.

2

700710321

DECAL

- spring

1шт.

3

700710298

DECAL

- adjust

1шт.

4

7889306

DECAL

- lube

15шт.

5

878694

REFLECTOR

- amber

1шт.

6

878157

DECAL

- notice

1шт.

7

7179641

DECAL

- patent

1шт.

8

8888398

DECAL

- danger

2шт.

9

1326528C1

DECAL

- danger, shield missing

1шт.

10

80672C1

DECAL

- danger, powerline

1шт.

11

700707207

DECAL

- dial, indicator

1шт.

12

700709165

DECAL

- information

1шт.

13

1976036C1

DECAL

- stripe, front (S.N. CFH0078501 thru CFH0078867)

1шт.

192848A2

DECAL

- case IH (S.N. CFH0078868 and later)

1шт.

14

700706193

DECAL

- dial

1шт.

15

7778202

DECAL

- oil chains

2шт.

16

700714229

DECAL

- be careful

2шт.

17

700710978

DECAL

- information (Lacing) (S.N. CFH0078501 thru CFH0078867)

1шт.

700713667

DECAL

- information (Lacing) (S.N. CFH0078867 and later)

1шт.

18

700710021

DECAL

- combo, right, front (S.N. CFH0078501 thru CFH0078867)

1шт.

700714314

DECAL

- combo, right, front (S.N. CFH0078868 and later)

1шт.

19

700711785

DECAL

- combo, right, rear (S.N. CFH0078501 thru CFH0078867)

1шт.

700714315

DECAL

- combo, right, rear (S.N. CFH0078868 and later)

1шт.

Выбрано товаров: 24
