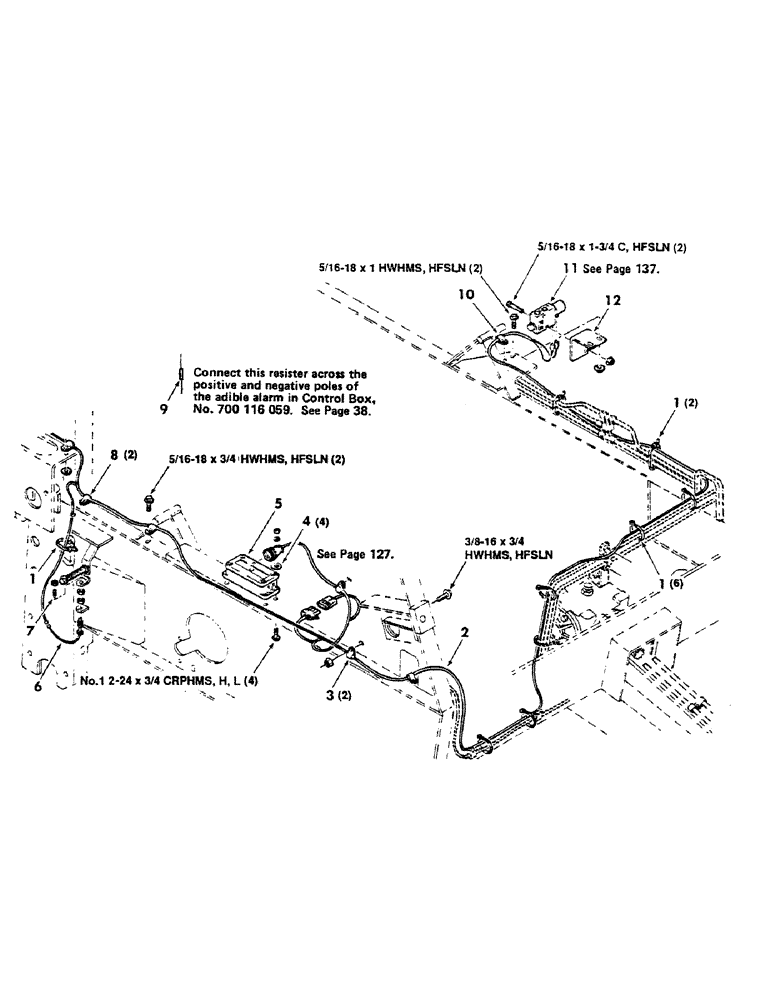

Запчасти Case IH 8450 (136) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, FRONT, S.N. CFH0015001 AND ON (16) - BALE EJECTOR

1

722470

MOUNTING CLIP

Tie - Cable

10шт.

2

700709346

HARNESS

- Wiring

1шт.

3

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

- Line

2шт.

4

705699

WASHER,#12

No. 12 Plain Washer

4шт.

5

700709344

TERMINAL BOX

Box - Electronic

1шт.

6

700119161

SWITCH

- Normally Open

1шт.

7

700707354

CONNECTION,ELECTRIC

Actuator Assembly

1шт.

8

751487

CLAMP

- Line

2шт.

9

700709553

RESISTOR

1шт.

10

700708090

CLAMP

- Line

1шт.

11

700708907

VALVE

- Ejector, Control

1шт.

12

700118985

MOUNTING PARTS

Mounting - Valve

1шт.

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 C

2шт.

700707203

CAPTIVE WASHER SCREW

No. 12-24 x 3/4 HWHMS

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

1шт.

7774888

NUT

No. 12-24 H

4шт.
