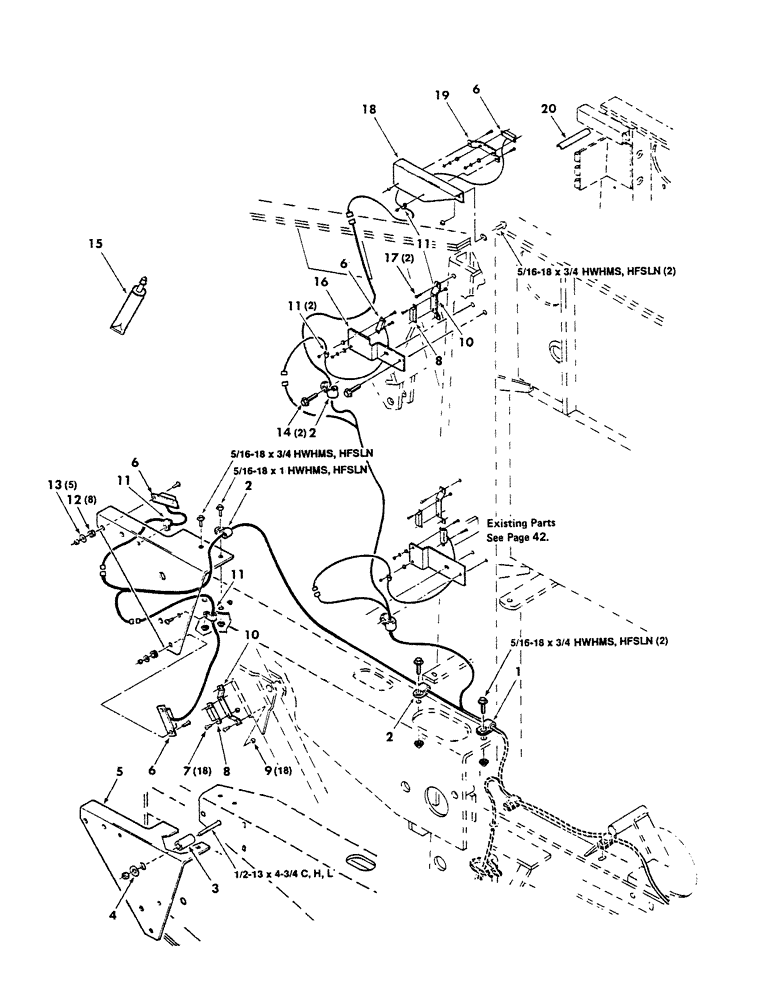

Запчасти Case IH 8450 (134) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, REAR, S.N. CFH0015767 AND ON (16) - BALE EJECTOR

1

751487

CLAMP

- Line

1шт.

2

700708090

CLAMP

- Line

3шт.

3

6181002

SPACER

1шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

1шт.

5

700122476

SUPPORT

Shield - Support, Switch

1шт.

6

700710208

ROTARY SWITCH

Switch Assembly

4шт.

7

700710188

SCREW

No. 6-32 x 3/4 CRPHMS

18шт.

8

700709996

SWITCH

Actuator - Magnet

2шт.

9

700710189

LOCK NUT

No. 6-32 LHSN

18шт.

10

700122574

SUPPORT

- Actuator

2шт.

11

700710448

CLAMP

4шт.

12

700710199

GROMMET

- Rubber

8шт.

13

700710187

WASHER

No. 6 Wide Plain Washer Stainless Steel

5шт.

14

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWHTCTS

2шт.

15

700710331

SCREW

Silicone - Dielectric Compound

1шт.

16

700122569

SUPPORT

- Switch

1шт.

17

64667

FLEXIBLE HOSE

- Pop

2шт.

18

700122568

SUPPORT

- Switch

1шт.

19

700122573

SUPPORT

- Switch

1шт.

20

700120657

ORNAMENTAL STRIP

Grommet

1шт.

7701600

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 x 4-3/4 C

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

5шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

1шт.
