(132) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, REAR, S.N. CFH0015001 THRU 0015766

Запчасти Case IH 8450 (132) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, REAR, S.N. CFH0015001 THRU 0015766 (16) - BALE EJECTOR

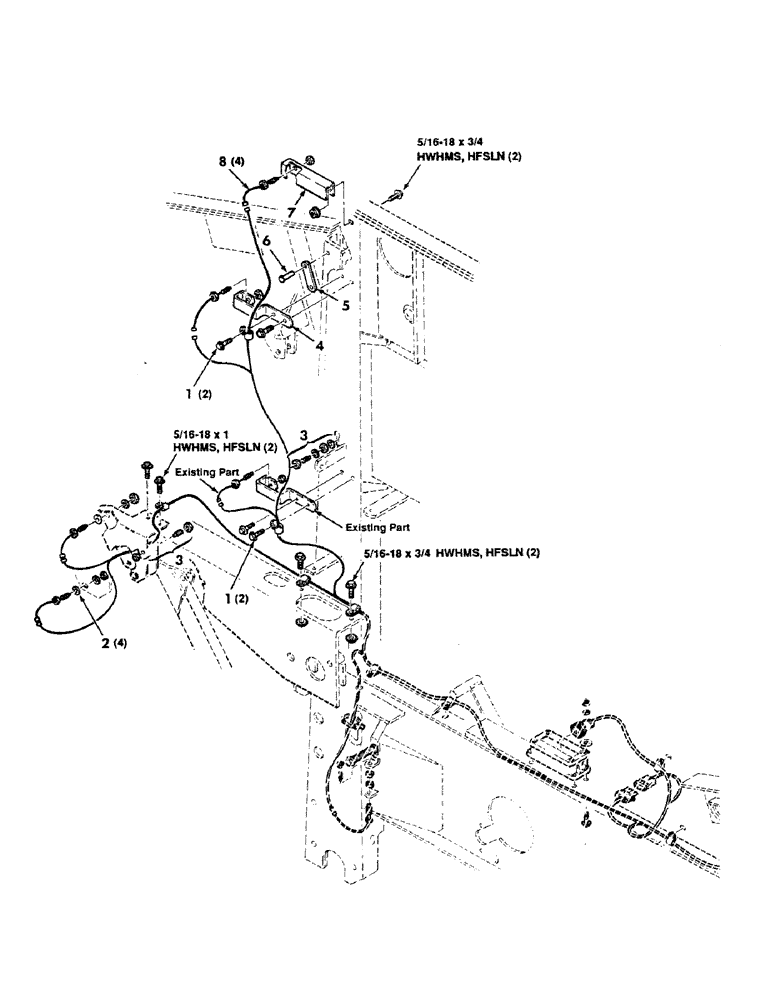

Схема запчастей Case IH 8450 - (132) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, REAR, S.N. CFH0015001 THRU 0015766 (16) - BALE EJECTOR
4
3
8
5
7
2
6
1
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWTCTS

4шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3/8 Narrow Plain Washer

4шт.

3

700707354

CONNECTION,ELECTRIC

Actuator

2шт.

4

700116136

SUPPORT

- Switch

1шт.

5

700707640

ACTUATOR

Strap - Actuator

1шт.

6

700707639

RIVET,Pop, 1/8" x .775"

- Pop

2шт.

7

700116138

SUPPORT

- Switch

1шт.

8

700119161

SWITCH

- Normally Open

5шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

6шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.
